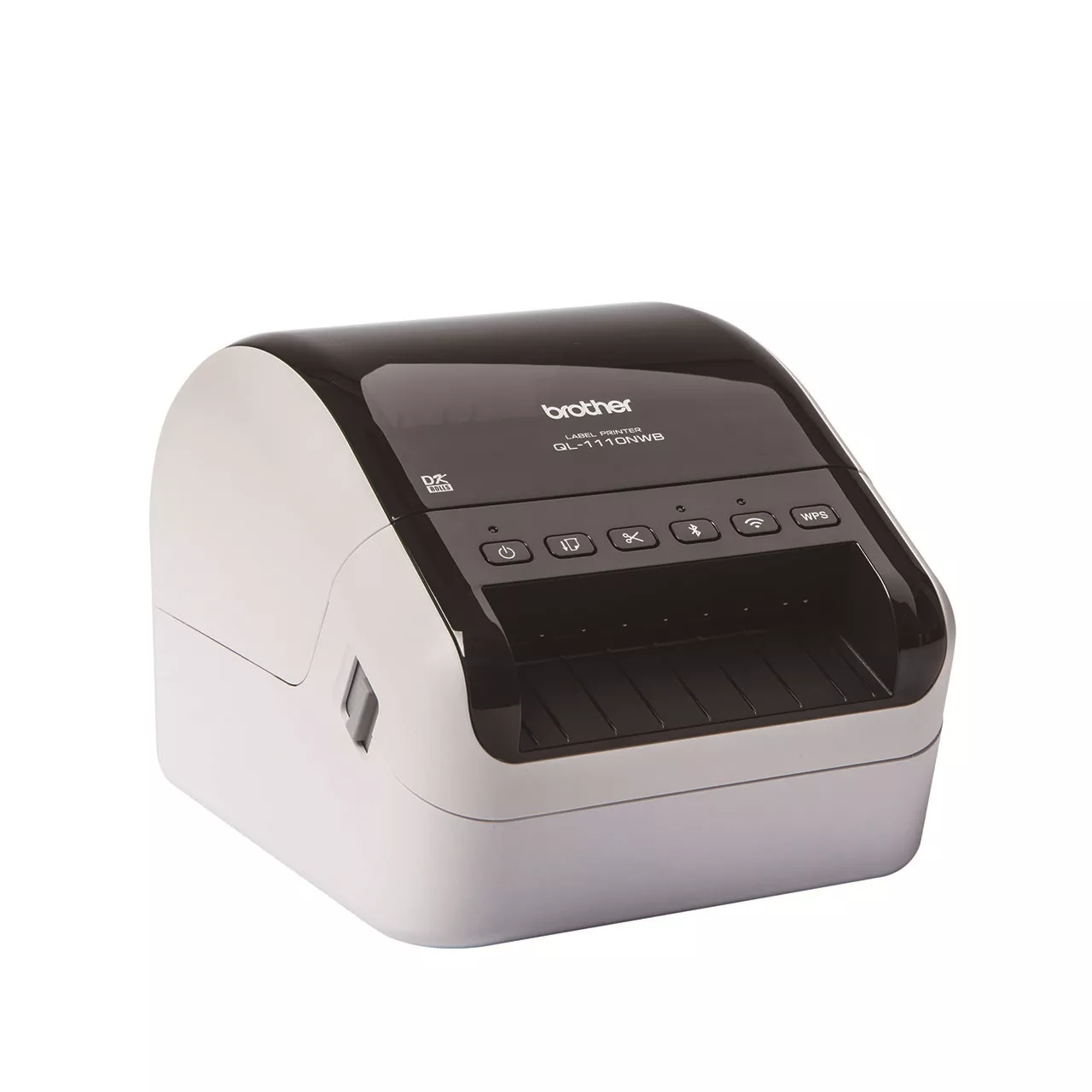

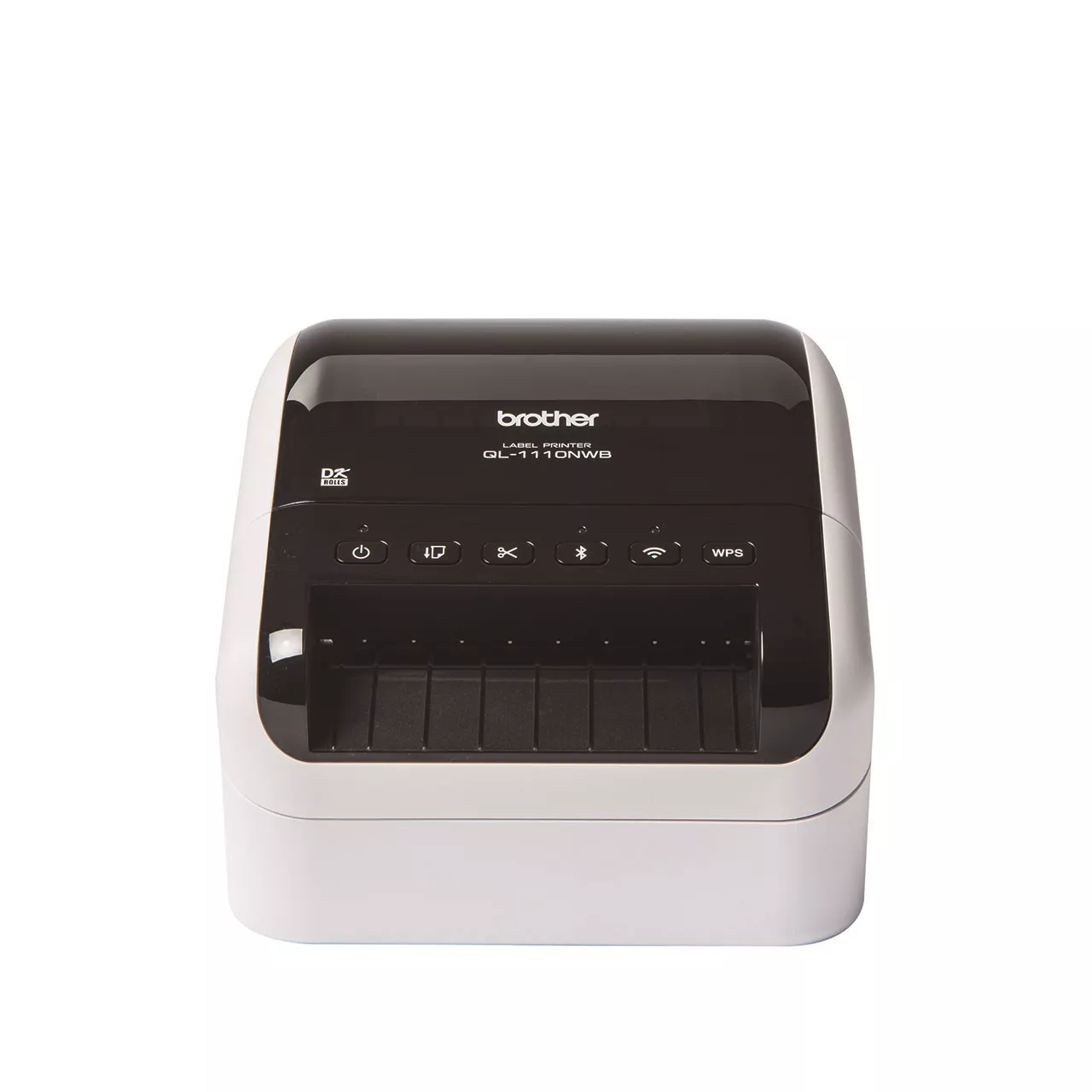

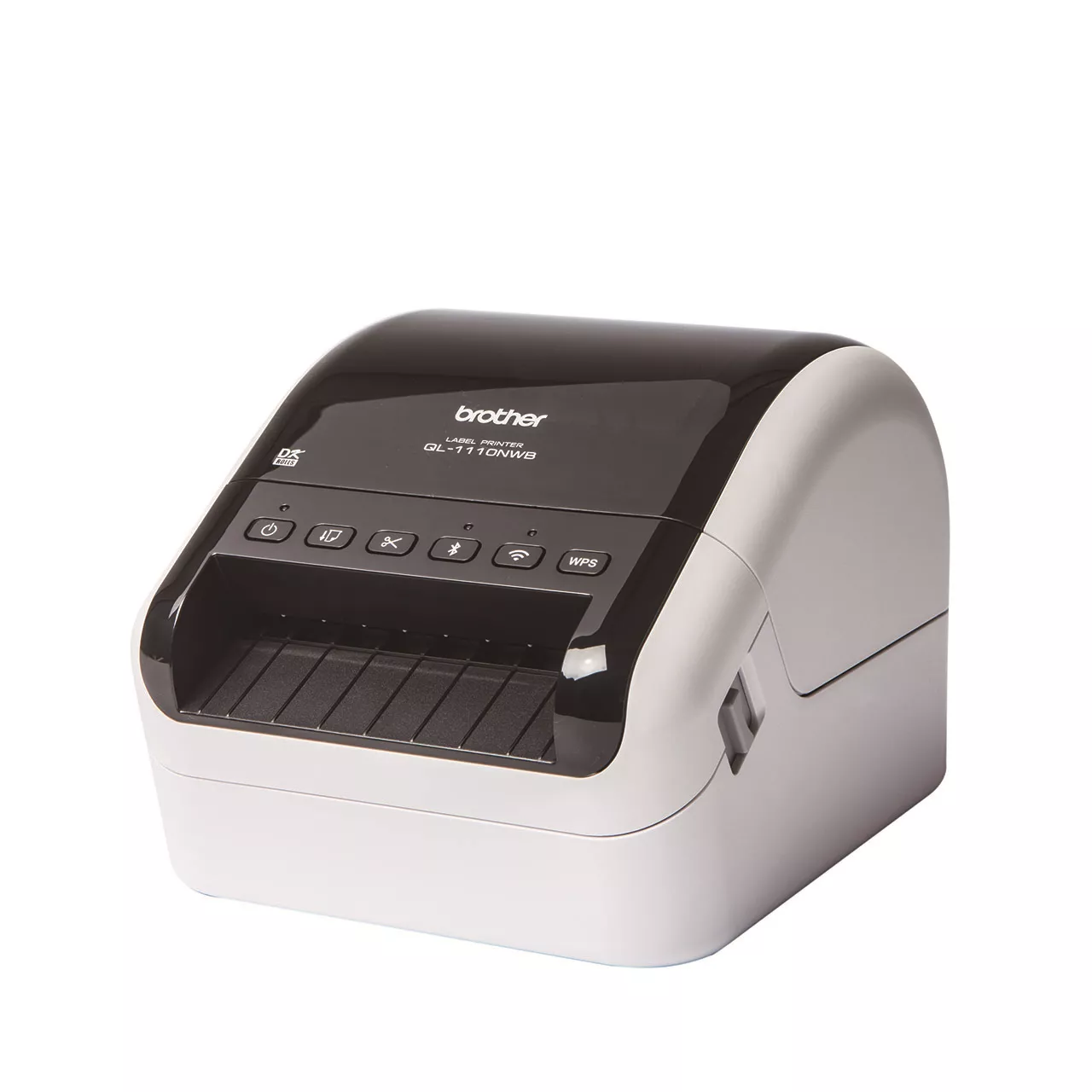

Professional wide format label printer with wireless networking
- Print up to 103mm DK rolls width
- USB, USB host, Bluetooth, Wired LAN and WiFi connection
- Auto cut function
- Auto Crop tool for shipping labels
- Fast print speed of up to 110mm per second
- Template printing through USB host
Information
Overview
Specifications
Basic Specs
Display Type
LED: green, red and orange
Media Type
DK roll
Available Tape Widths
12 - 103.6mm
Product Dimensions (Width X Depth X Height)
222 × 170 × 151
Print Speed
Max 110mm/sec.
69 standard address labels / min
Warranty
1 Year Carry in Warranty
Resolution
300 dpi / 1296 dots
Barcode
Yes
Numbering
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN IEEE 802.11b/g/n, Bluetooth
Media
Maximum Roll Width
12 - 103.6mm
Printing Width
Up to 101.6 mm
Functions
Cutter
Auto
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
7.8MB
255 templates
Power
Power Source
240V AC internal power supply
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
