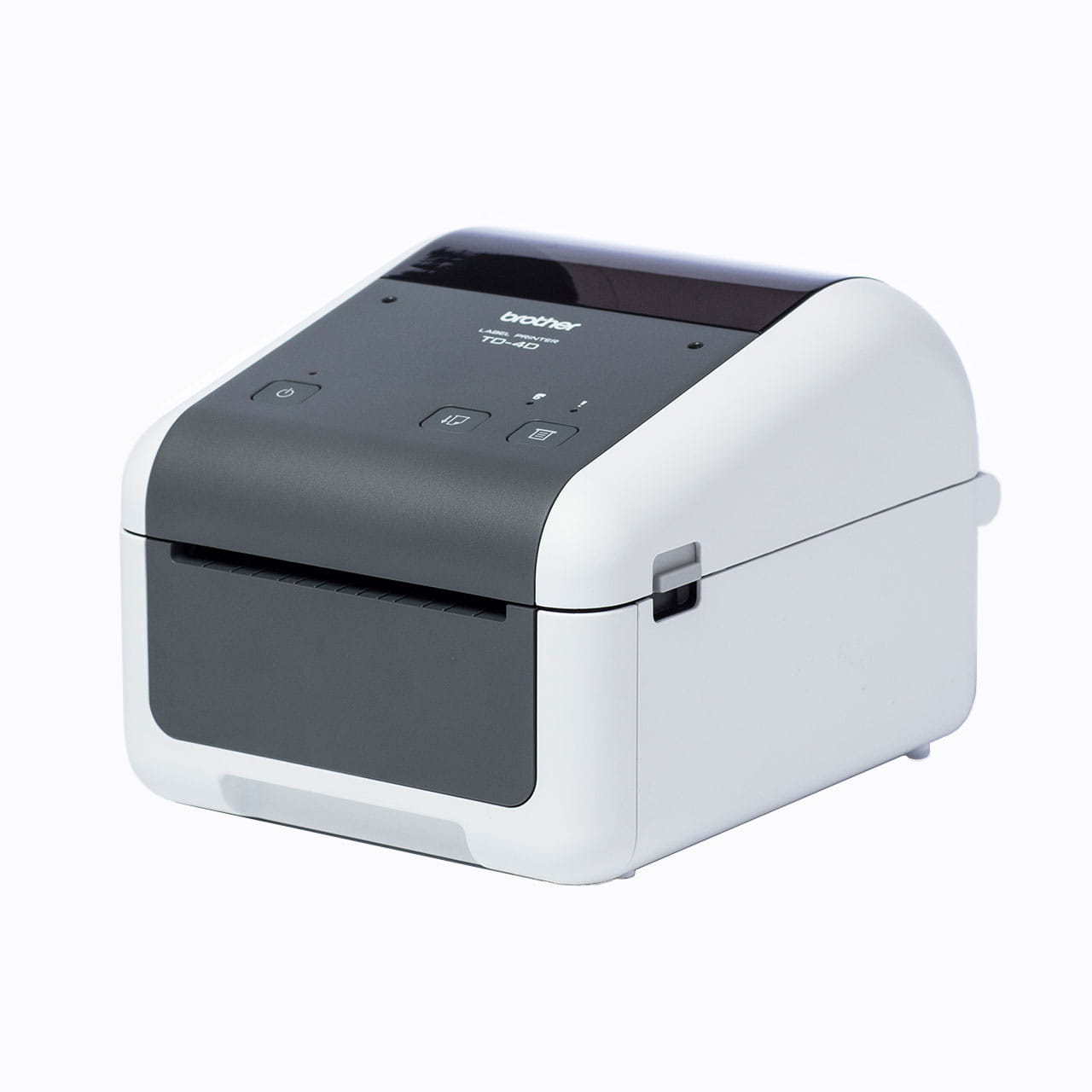

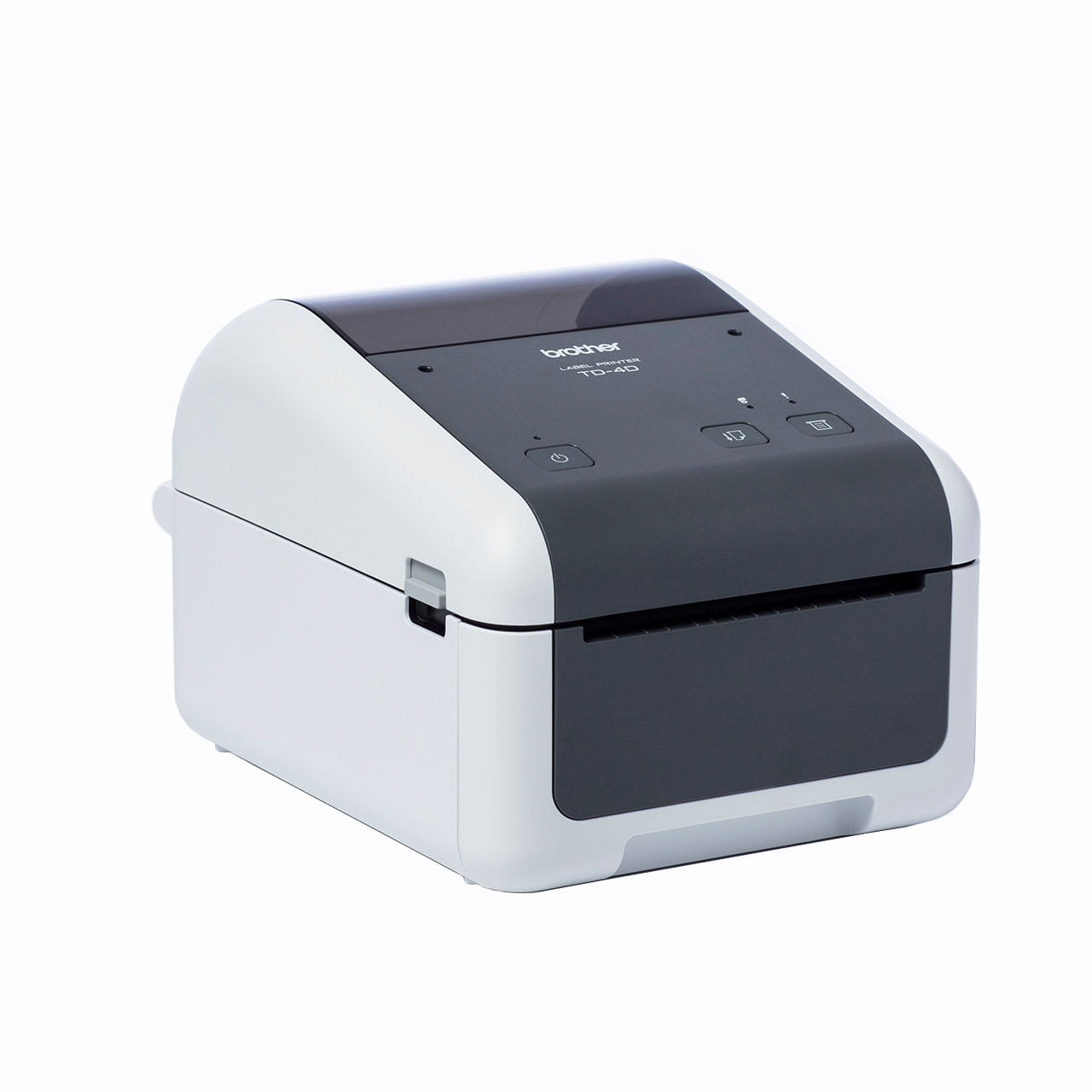

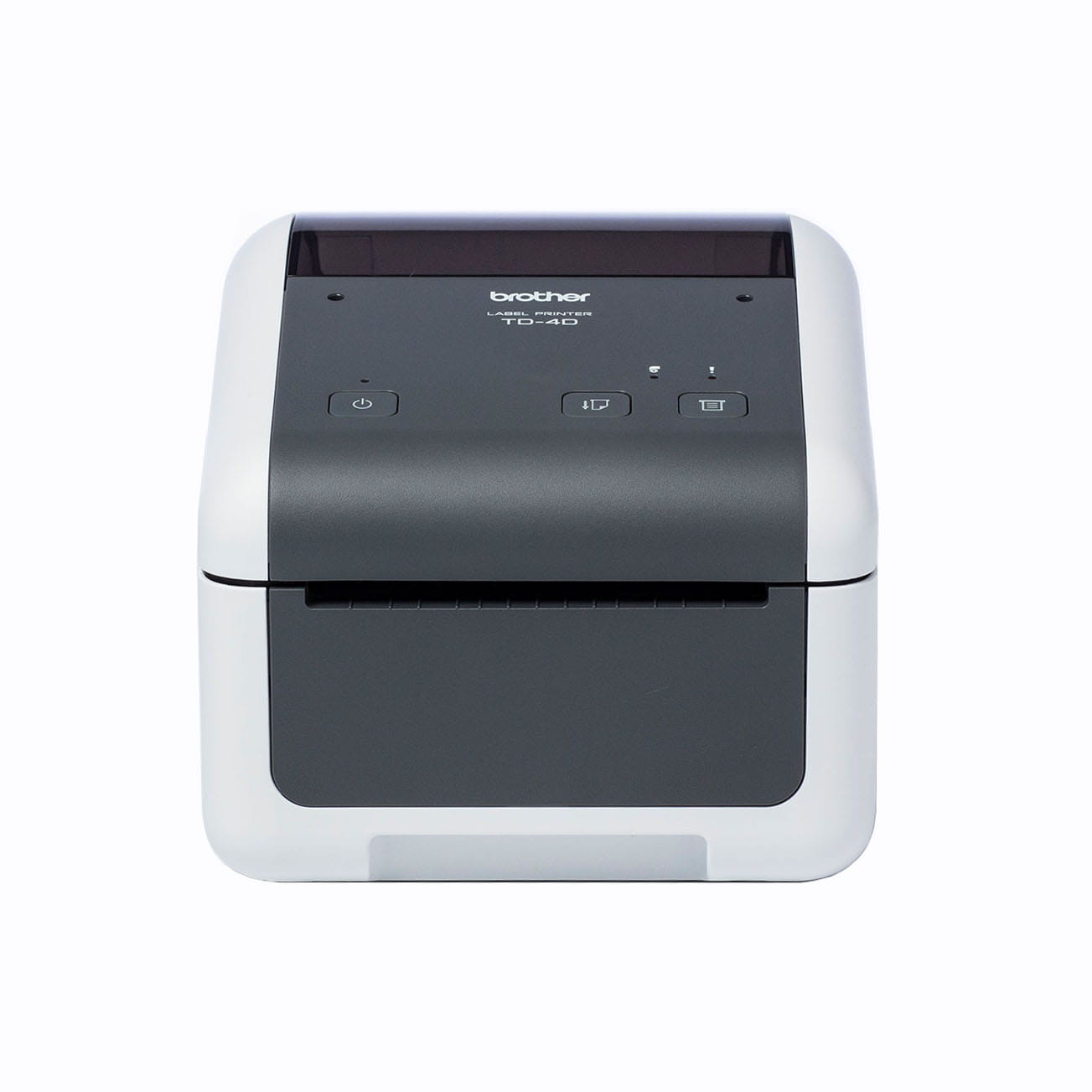

Professional wide format label printer
- Print up to 118mm RD rolls width
- USB, Serial connection
- Tear Bar
- Automatic media calibration
- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview
Specifications
Basic Specs
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated ,Tag
Available Tape Widths
19 ~ 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Resolution
203 dpi
Barcode
Yes
Connectivity
Connectivity
USB
Media
Maximum Roll Width
Up to 118 mm
Printing Width
Up to 104.1 mm
Memory
Memory Buffer Size
64MB
Supported Operating Systems
Supported OS
Windows 7, 8, 8.1, 10, Server 2008/ 2008 R2/ 2012/ 2012 R2/ 2016
Supported Commands
Supported Commands
P-touch Template, Raster, ESC/P, ZPL II emulation, CPCL emulation
Show More
Show Less
