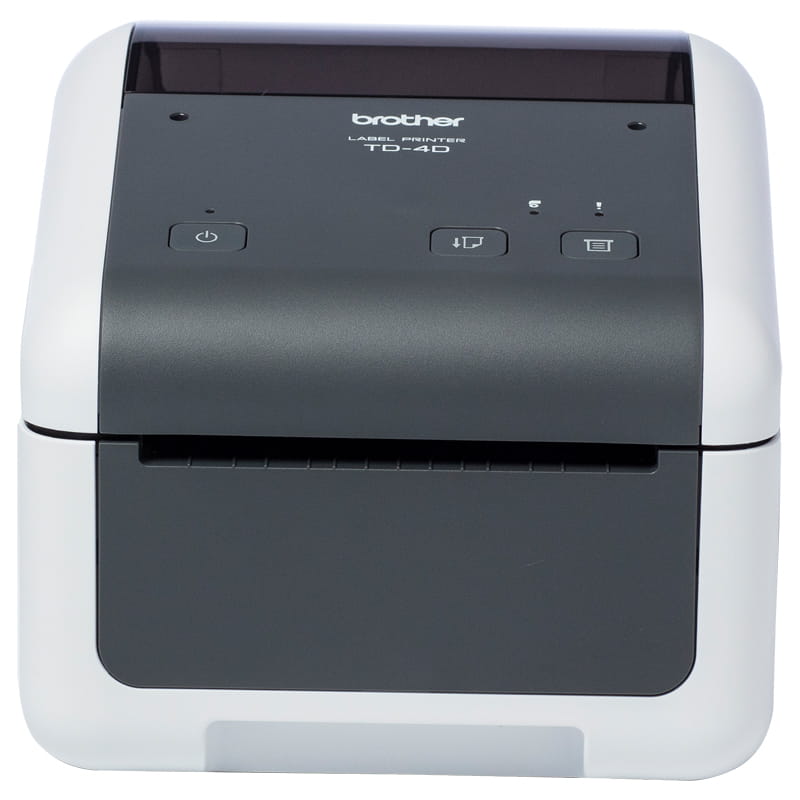

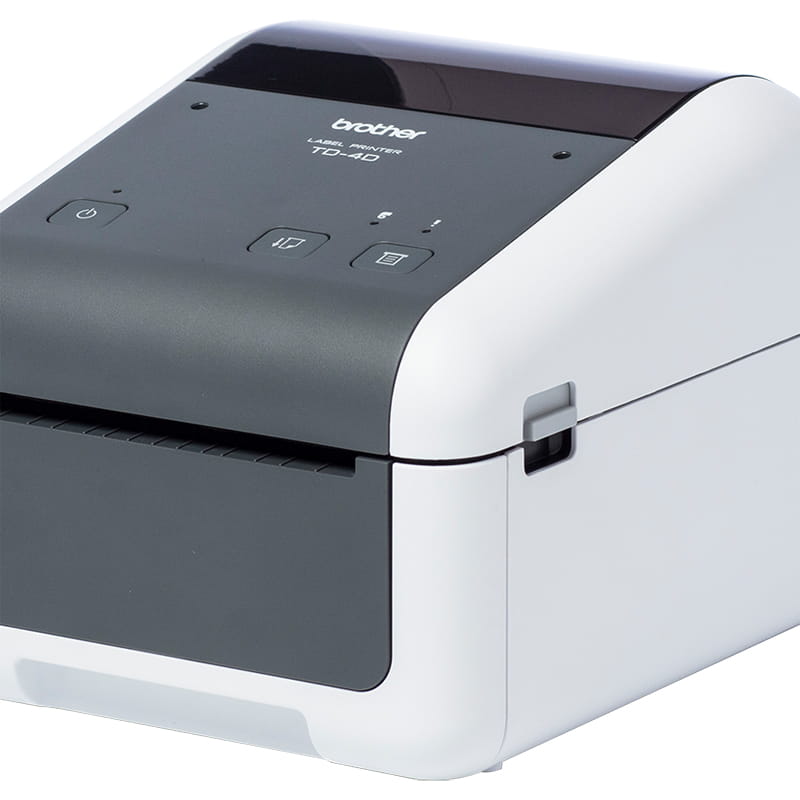

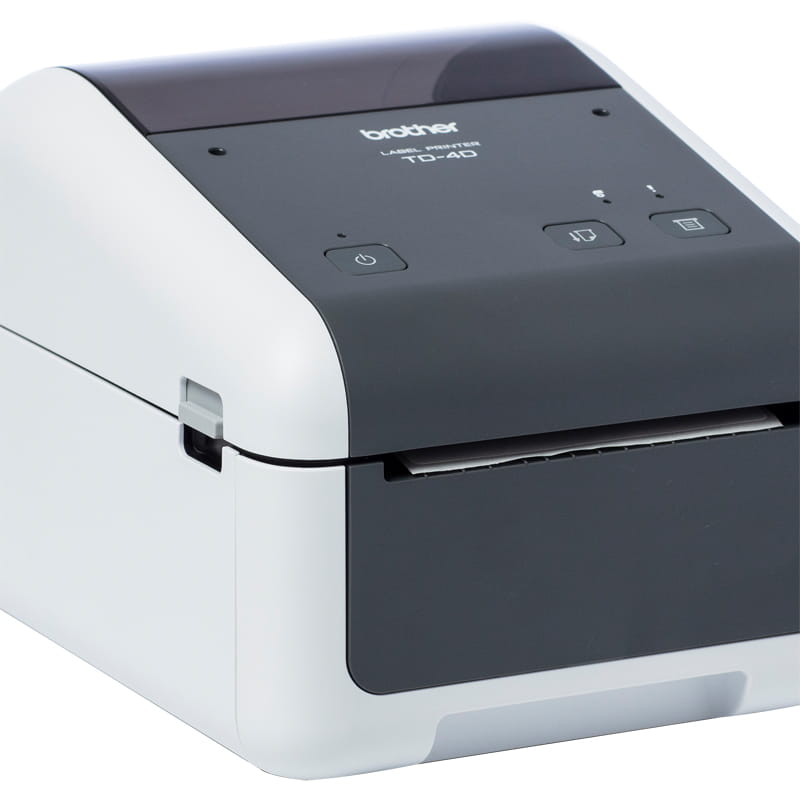

203dpi Direct Thermal Barcode, Label and Receipt Printer
- Print up to 118mm RD rolls width
- USB, Serial and Wired LAN connection
- Tear Bar
- Automatic media calibration
- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview
Specifications
Basic Specs
Display Type
SVGA/High Color or more
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated ,Tag
Available Tape Widths
19 ~ 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Resolution
203 dpi
Barcode
Yes
Connectivity
Connectivity
USB
Media
Maximum Roll Width
Up to 118 mm
Printing Width
Up to 104.1 mm
Functions
Cutter
Die-cut labels / Tear off
Mirror Printing
Yes
Preview
No
Memory
File Storage
max 99 templates
Memory Buffer Size
64MB
Power
Power Source
AC adapter ( 100 - 240 V 50/60Hz)
Auto Power-Off
Yes
Supported Operating Systems
Supported OS
Windows 7, 8, 8.1, 10 , Server 2008/ 2008 R2/ 2012/ 2012 R2/ 2016
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation
