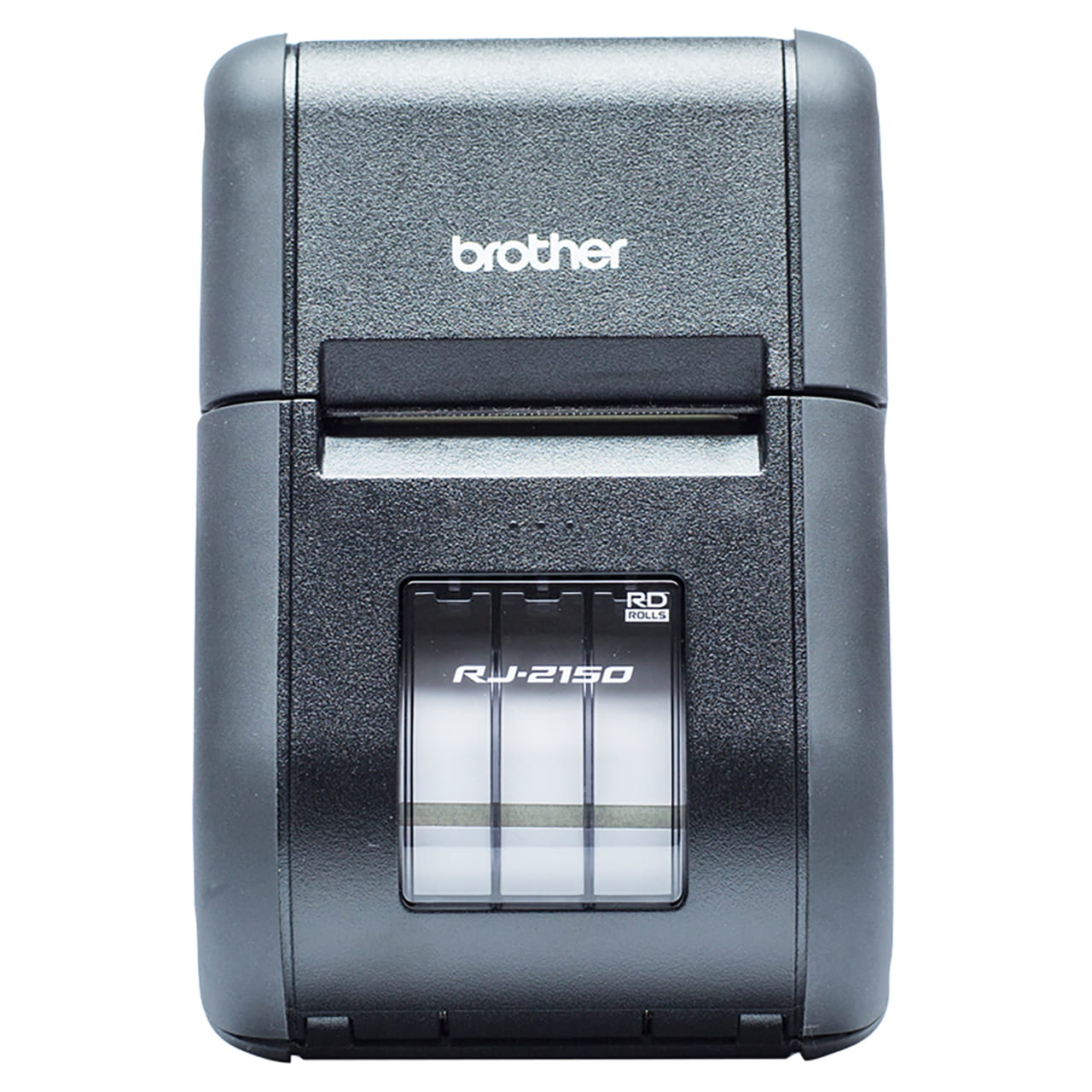

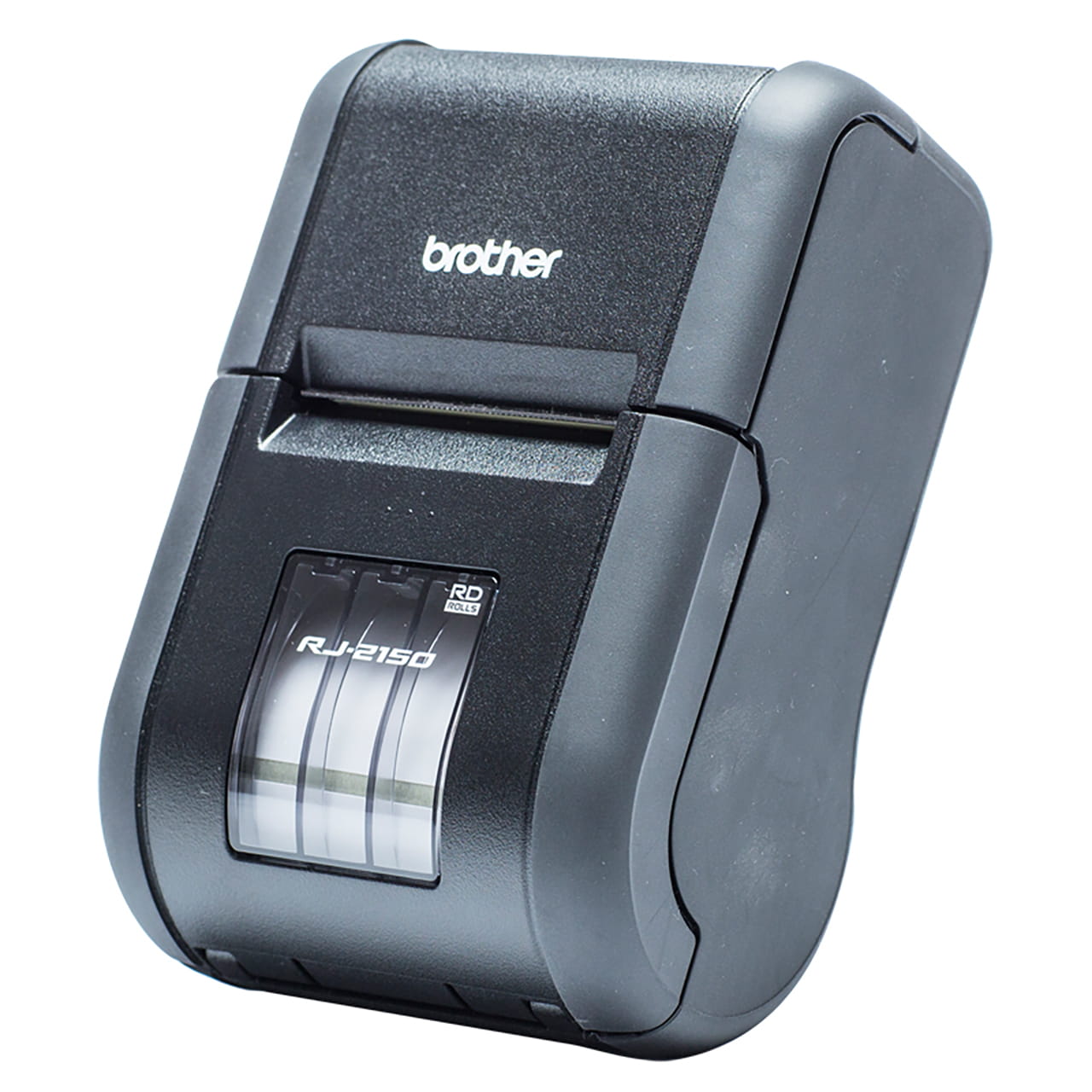

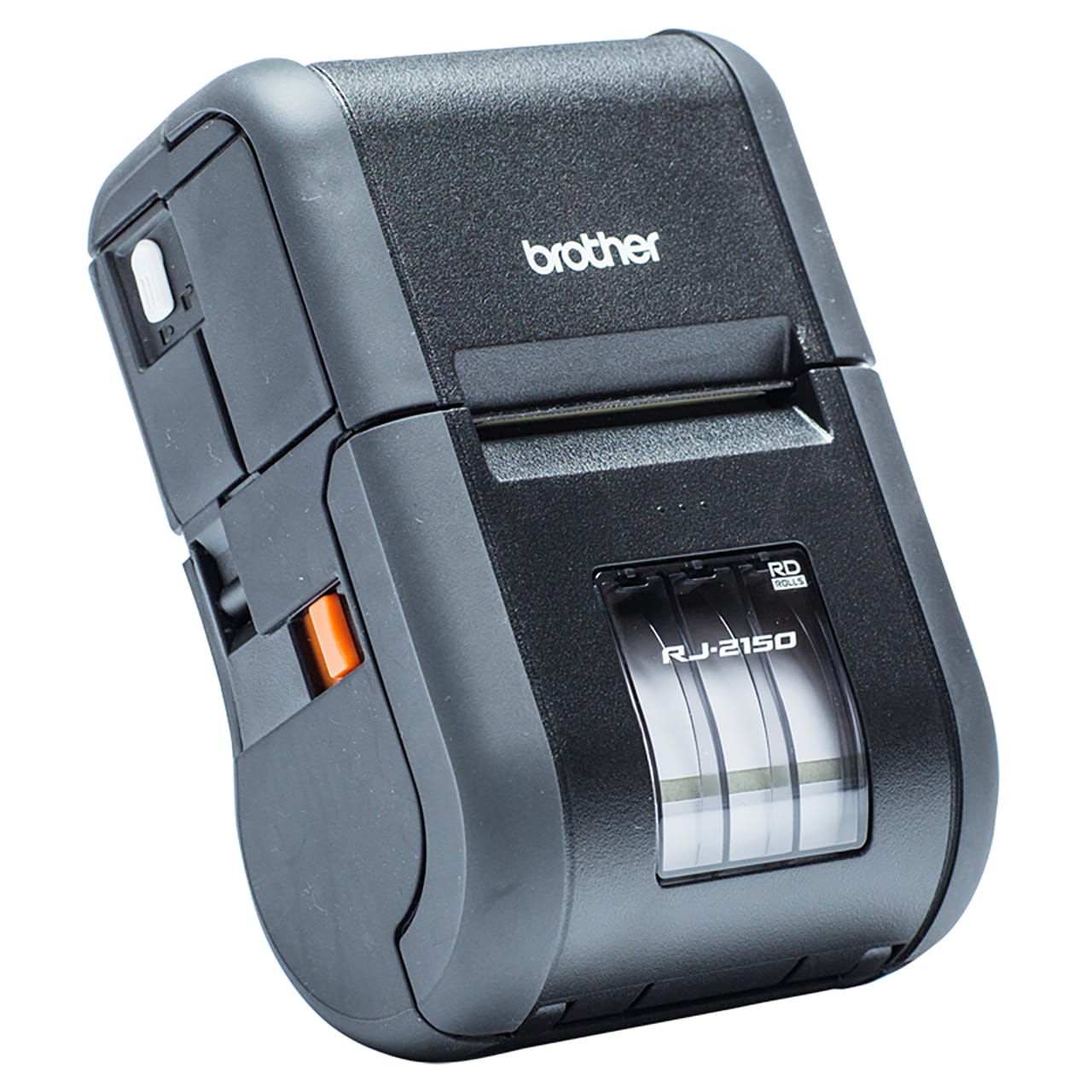

50mm Mobile Printer
- Print up to 58mm RD rolls width
- USB, Bluetooth, MFI, AirPrint® and WiFi connection
- Tear Bar
- Rugged with 2.5m drop protection
- IP54 protection rating
- Optional accessories available
Information
Overview
Specifications
Basic Specs
Functions
Product Dimensions (Width X Depth X Height)
151 × 100 × 73
Print Speed
Ave: 6ips or 152 mm / sec (under Brother standard environment)
Paper Size
Roll size: Inner Diameter 10.2mm / Outer Diameter 60mm
Sealing
IP54
Maximum Paper Capacity
Receipt, Label, Tag Label
Resolution
203 dpi
Printing Width
Up to 58 mm
Barcode
Code39, Code93, Code128, ITF(I-2/5), EAN-8, EAN-13, UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR, GS1-128(UCC/EAN-128), RSS symbols, POSTNET, MSI, QR Code (Model 1, Model 2, Micro QR), PDF417 (Standard, Truncate, MicroPDF417), Data Matrix(ECC200 Square, ECC200 Rectangular), MaxiCode, Aztec
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN IEEE 802.11b/g/n
Display & Memory
Display Type
Mono LCD
Memory Capacity
32 MB
Operation
Temperature Operating
-10°C to 35°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touchTemplate, ZPL emulation, CPCL emulation
Supported Operating Systems
Supported OS
Windows Vista / 7 / 7 / 8.1 /10, iOS and Android
