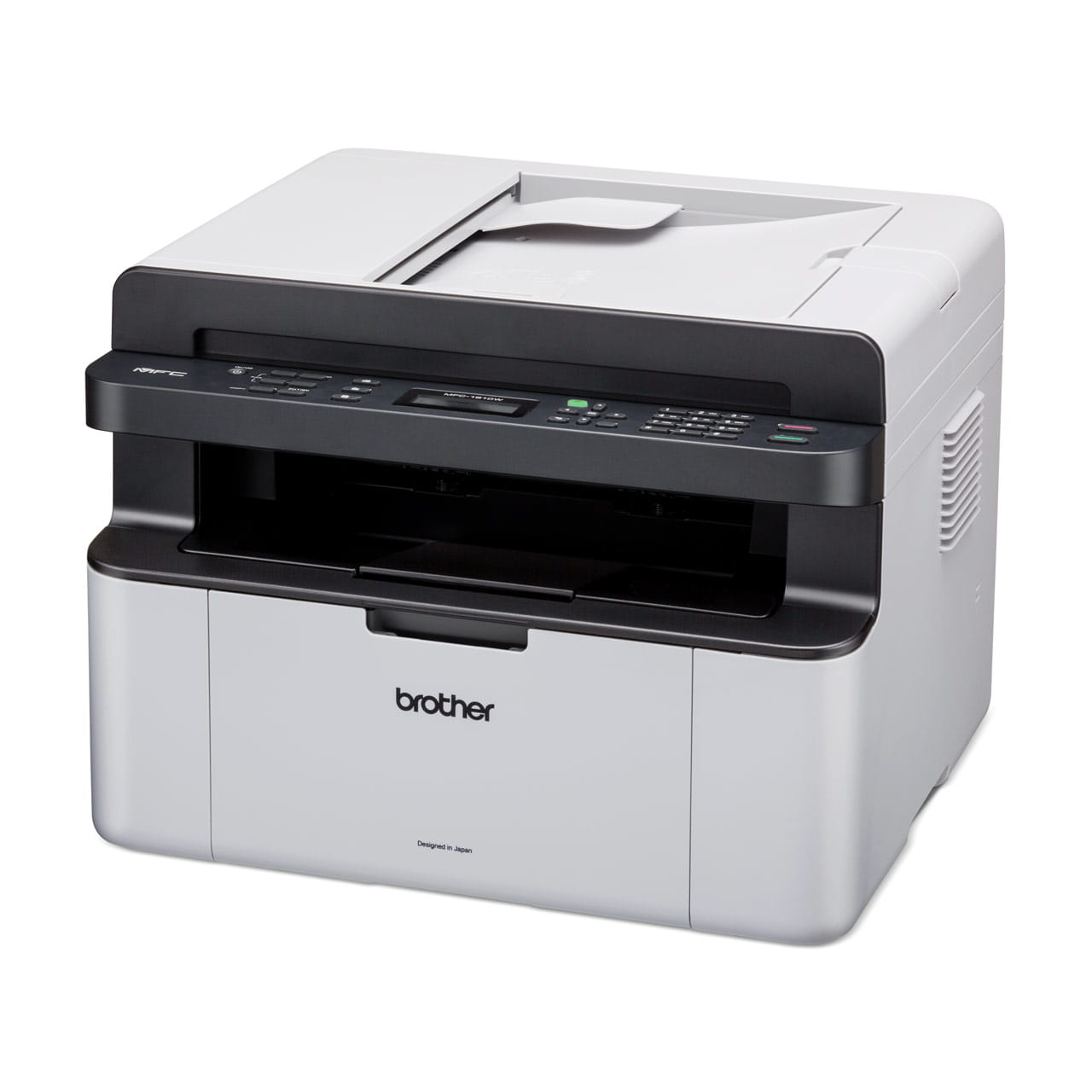

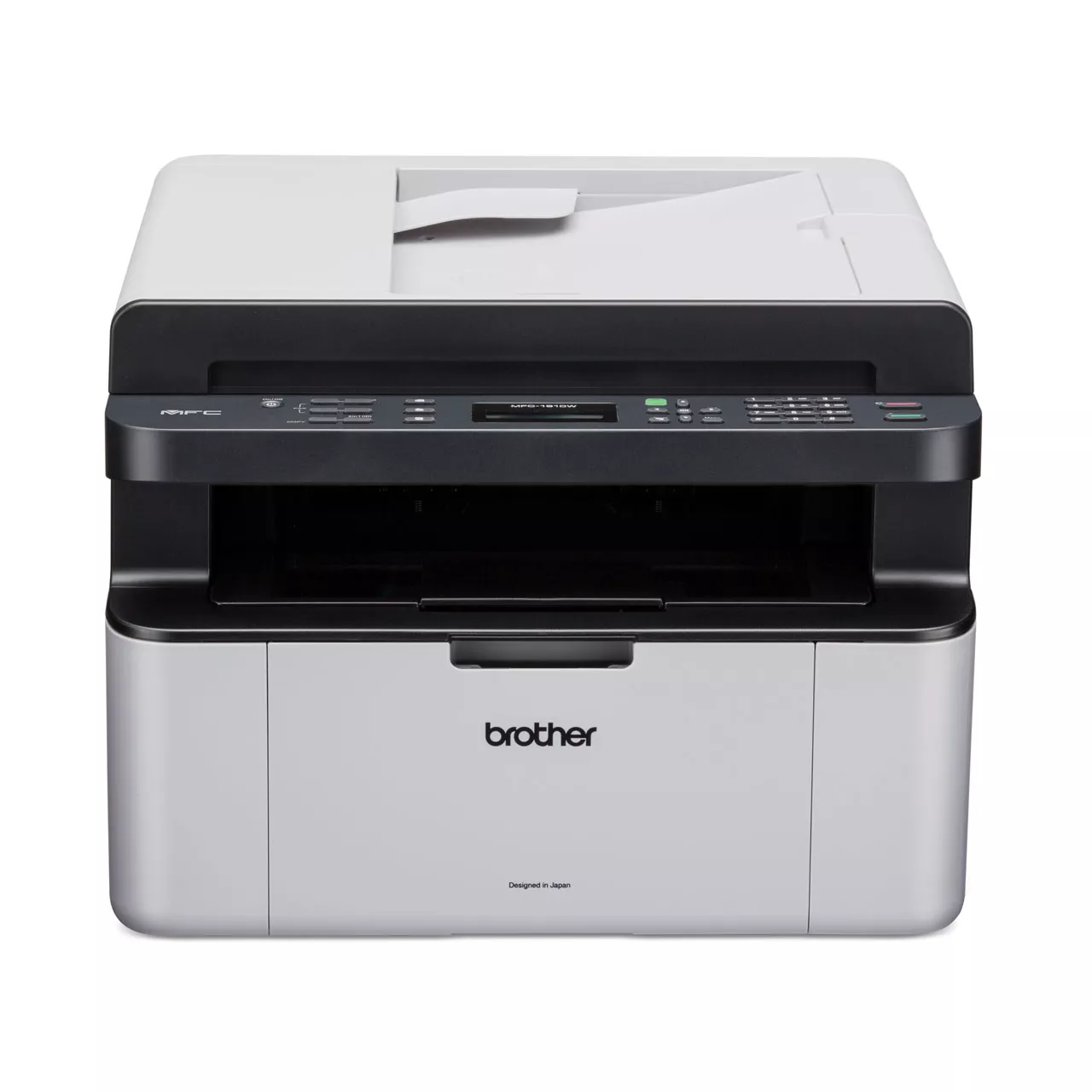

Compact Monochrome Laser Multi-Function Centre with Fax, ADF and Wireless Capability
- USB Hi-Speed 2.0, Wireless
- Up to 2400 x 600 dpi (HQ1200 technology)
- Fast print speeds up to 20ppm (A4) for mono laser printing
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
385 mm × 340 mm × 283 mm
Weight
8.2 kg
Print Speed
Up to 20ppm
Paper Type
Plain Paper, Recycled Paper
Paper Size
A4, Letter, Legal, Folio, A5, A5(Long Edge), B5, Executive
Width: 148 to 216 mm | Length: 148 to 355.6 mm
Maximum Paper Capacity
Up to 150 sheets of 80 g/m2 Plain paper
Warranty
1 Year Carry in Warranty
Resolution
Up to 2400 x 600 dpi (HQ1200 technology)
Paper handling
Tray #1 - Paper Type
Plain Paper, Recycled Paper
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 10 pages
Paper Output
Up to 50 sheets of 80 g/m2 Plain Paper (face-down delivery to the face-down output paper tray)
Copy
Multiple Copies
Stacks or Sorts up to 99 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 × 600 dpi
Scan
Resolution - Interpolated
Up to 19,200 × 19,200 dpi
Resolution - Scanner Glass
Up to 600 × 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 × 600 dpi (optical) (from ADF)
Fax
Modem Speed
14,400 bps (with Automatic Fallback)
Memory Transmission
Up to 400 pages
Out of Paper Reception
Up to 400 pages
Connectivity
Connectivity
Hi-SpeedUSB2.0, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode)
Network
Wireless Network Security
WEP 64/128, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Memory Capacity
32 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approx. 50 W at 25 ° C
Power Consumption - Power Off
Approx. 0.3 W
Noise Level
L pa m = 52 dB (A)
Supported Operating Systems
Supported OS
Window 8.1/8/7, Windows Vista, Windows XP Home/Professional/Professional x64, Windows Server 2012/2012 R2/2008 R2/2008/2003 x64 Edition/2003
Mac OS X v10.9.x, 10.8.x, 10.7.5 (Download only)
