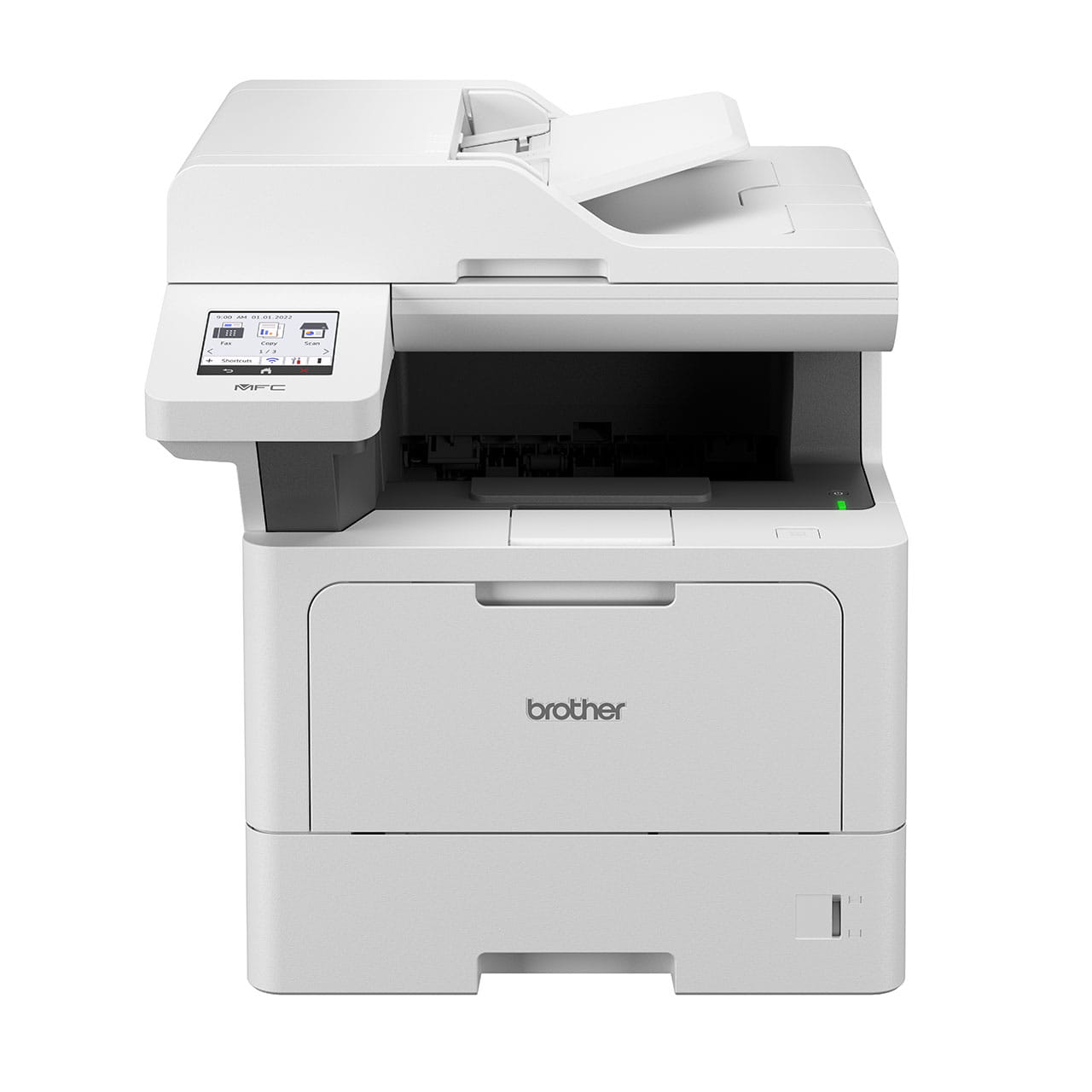

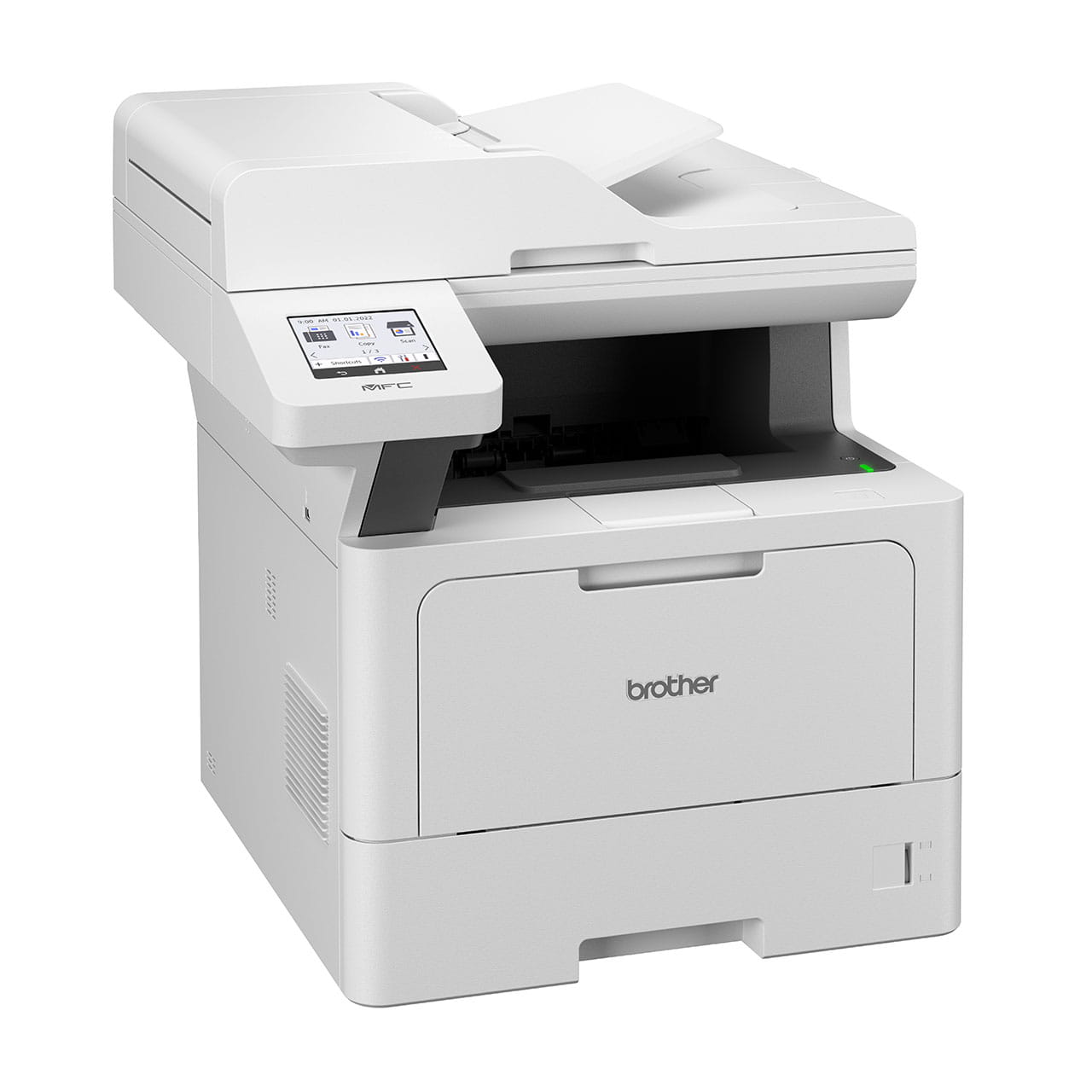

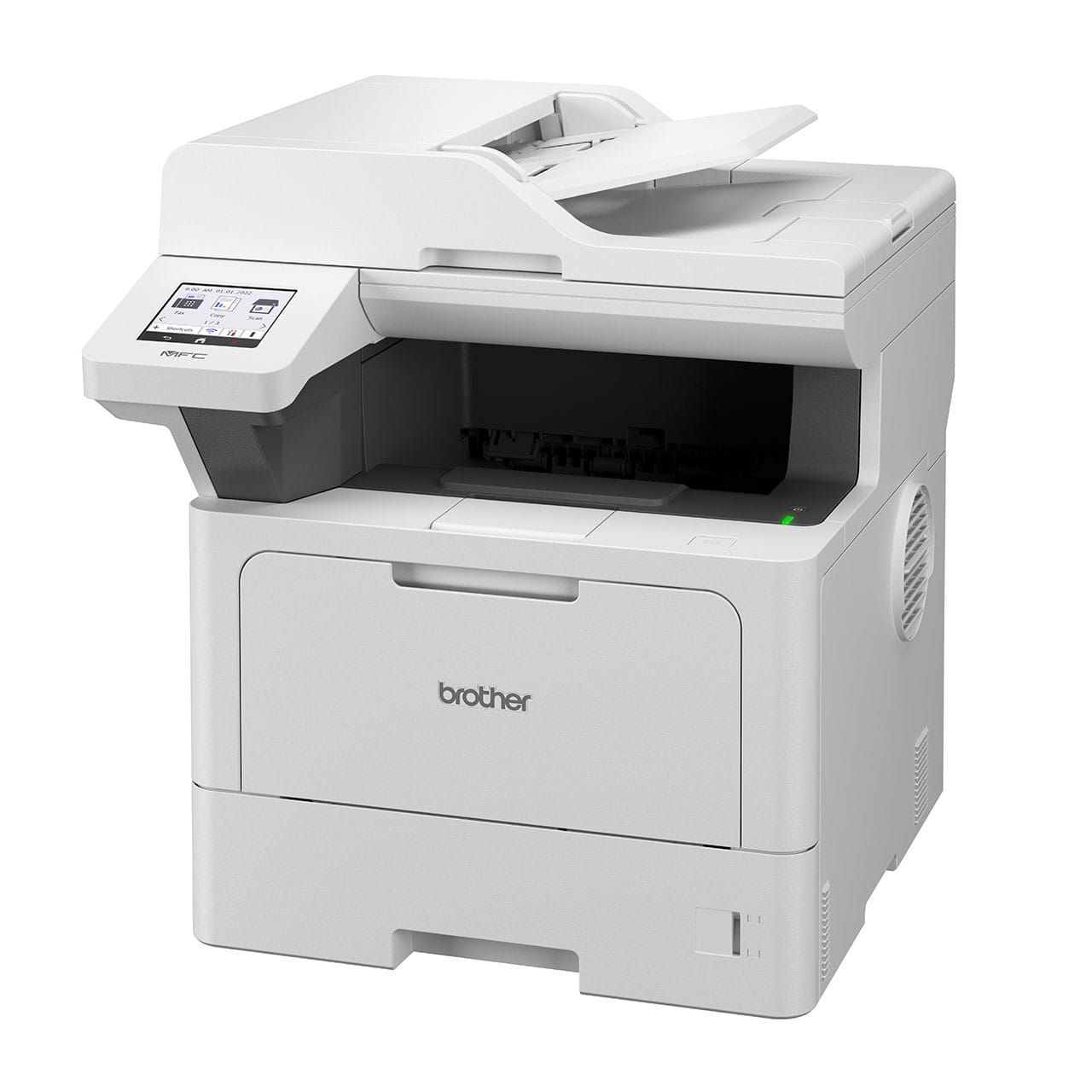

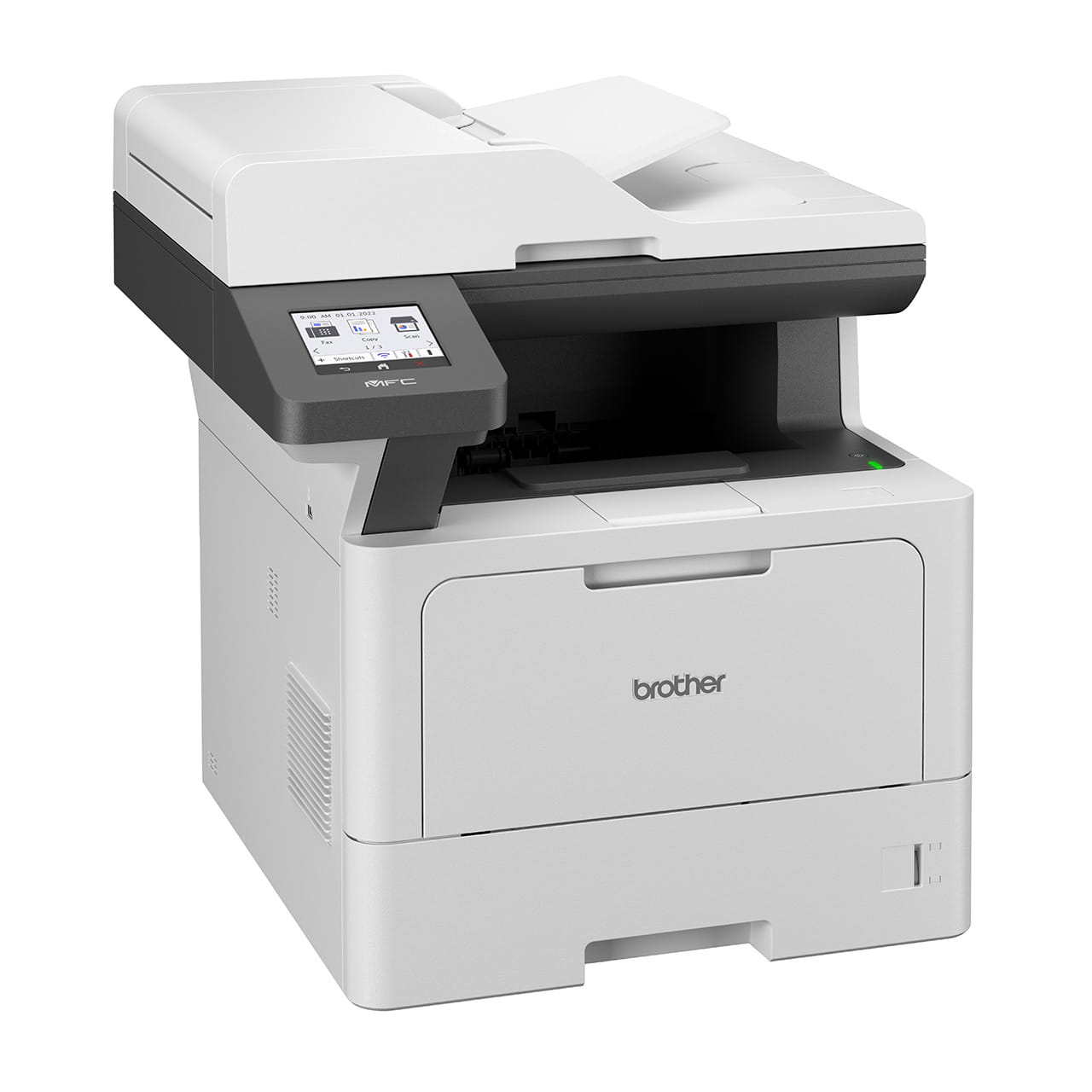

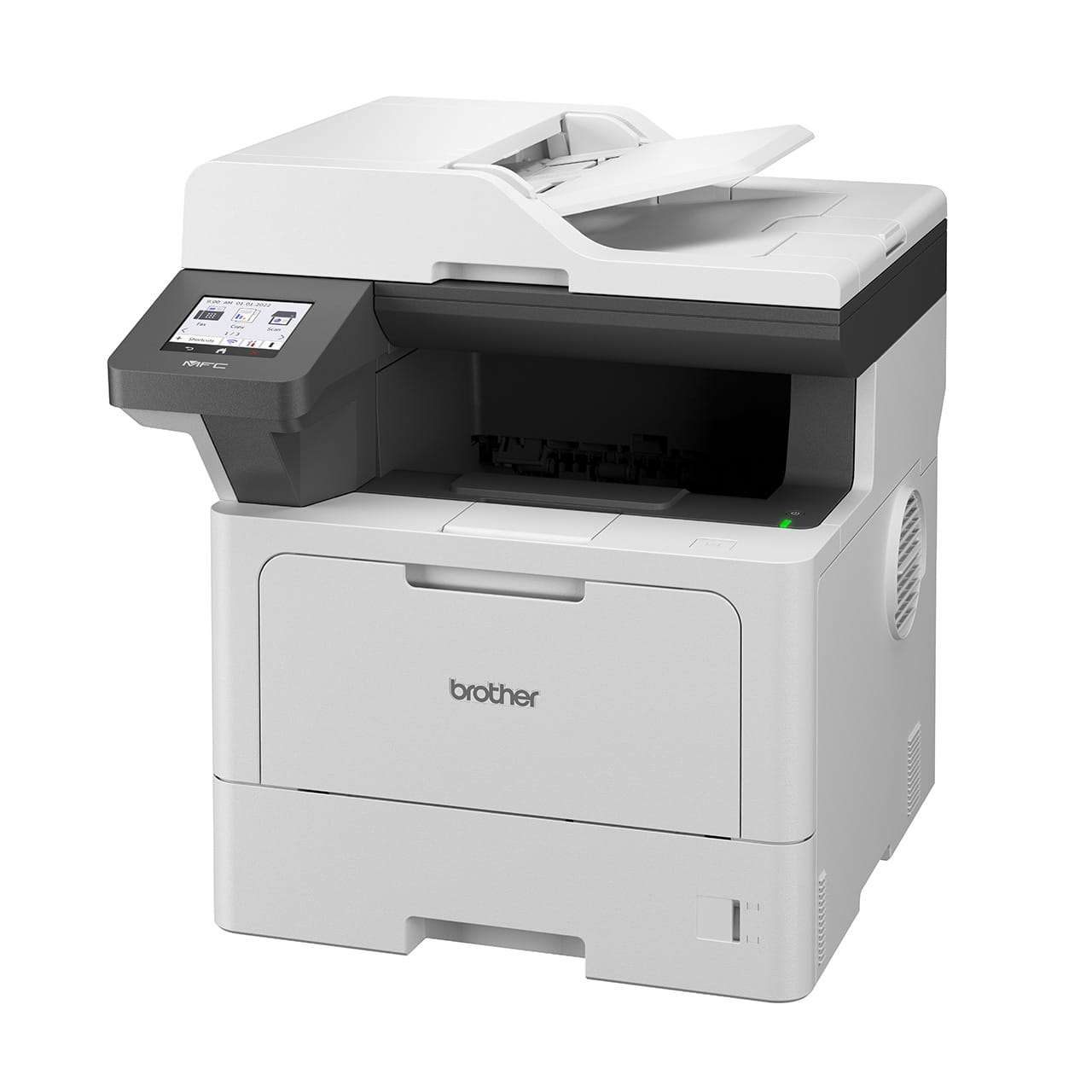

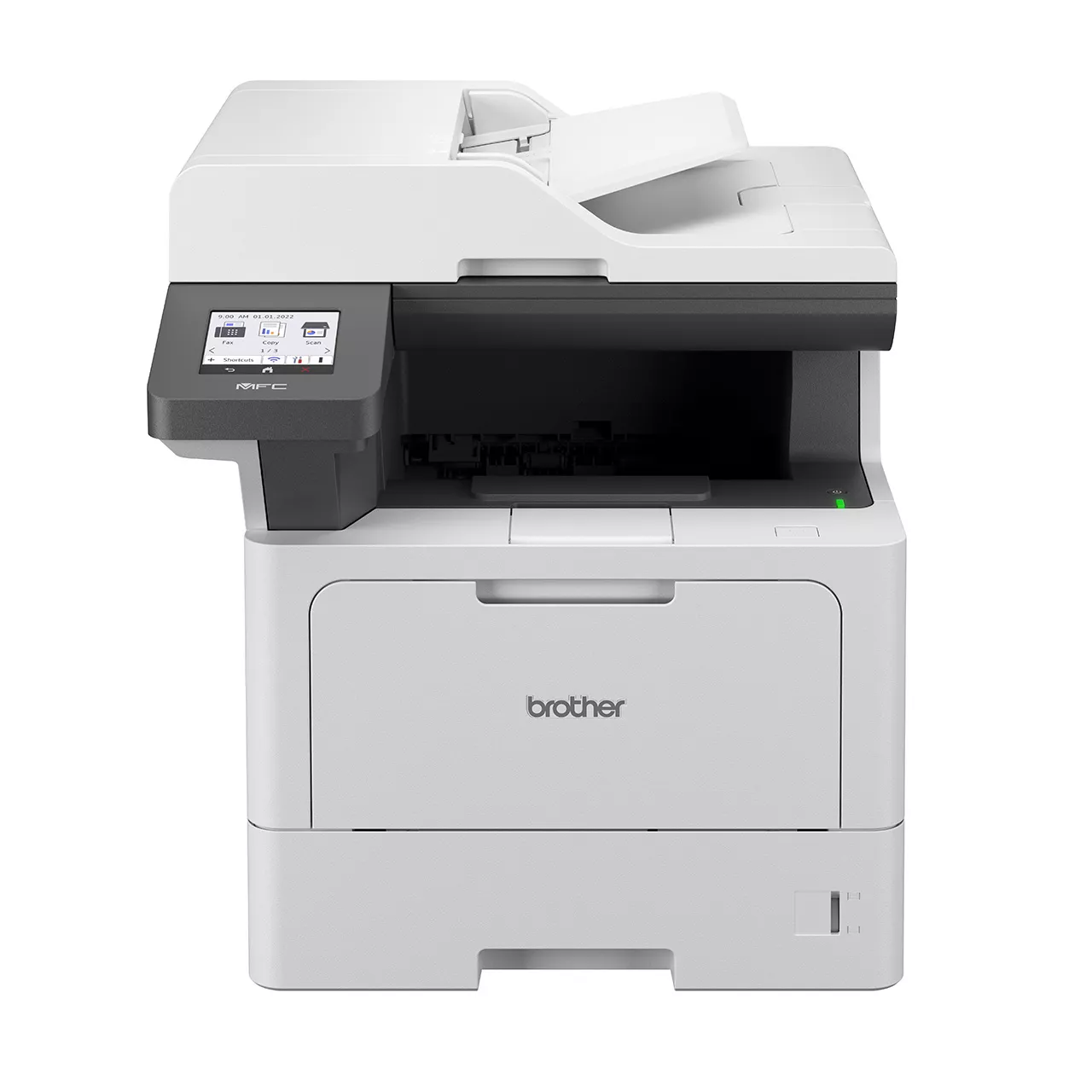

Professional Monochrome Laser Multi-Function Printer
- Up to 48 ppm
- USB, Wireless (2.4 & 5GHz) & Wi-Fi Direct
- Wired Network Connectivity
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
417 mm × 461 mm × 448 mm
Weight
14.9 kg
Print Speed
Up to 48 (A4) / Up to 50 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 1,390 sheets of 80 gsm plain paper (with Added Optional Trays)
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Maximum Paper Weight
60 to 163 gsm (16 to 43 lb.)
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Tray #1 - Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Paper Size
A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Weight
60 to 230 gsm (16 to 60 lb.)
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 1200 x 600 dpi
Scan
Colour / Monochrome
Yes / Yes
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Document Scanning Width / Length - Scanner Glass
Width: Up to 216 mm
Length: Up to 300 mm
Document Scanning Width / Length - Automatic Document Feeder (ADF)
Width: 105 to 215.9 mm
Length: 147.3 to 355.6 mm
1-Sided (Simplex) - Scan Speed
Up to 28 (Mono) / Up to 20 (Colour) ipm
2-Sided (Duplex) - Scan Speed
Up to 56 (Mono) / Up to 40 (Colour) ipm
Fax
Compatibility
ITU-T Super G3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Fax Forwarding
Yes
PC Fax - Sending
Yes (Mono)
PC Fax - Receiving
Yes (Mono)
Connectivity
WiFi Direct
Yes
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Display & Memory
Display Type
8.8 cm (3.5") Colour Touchscreen LCD
Memory Capacity
512 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Printing
Approximately 670 W
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.9 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 10, Windows 11, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
macOS v11, macOS v12, macOS v13
