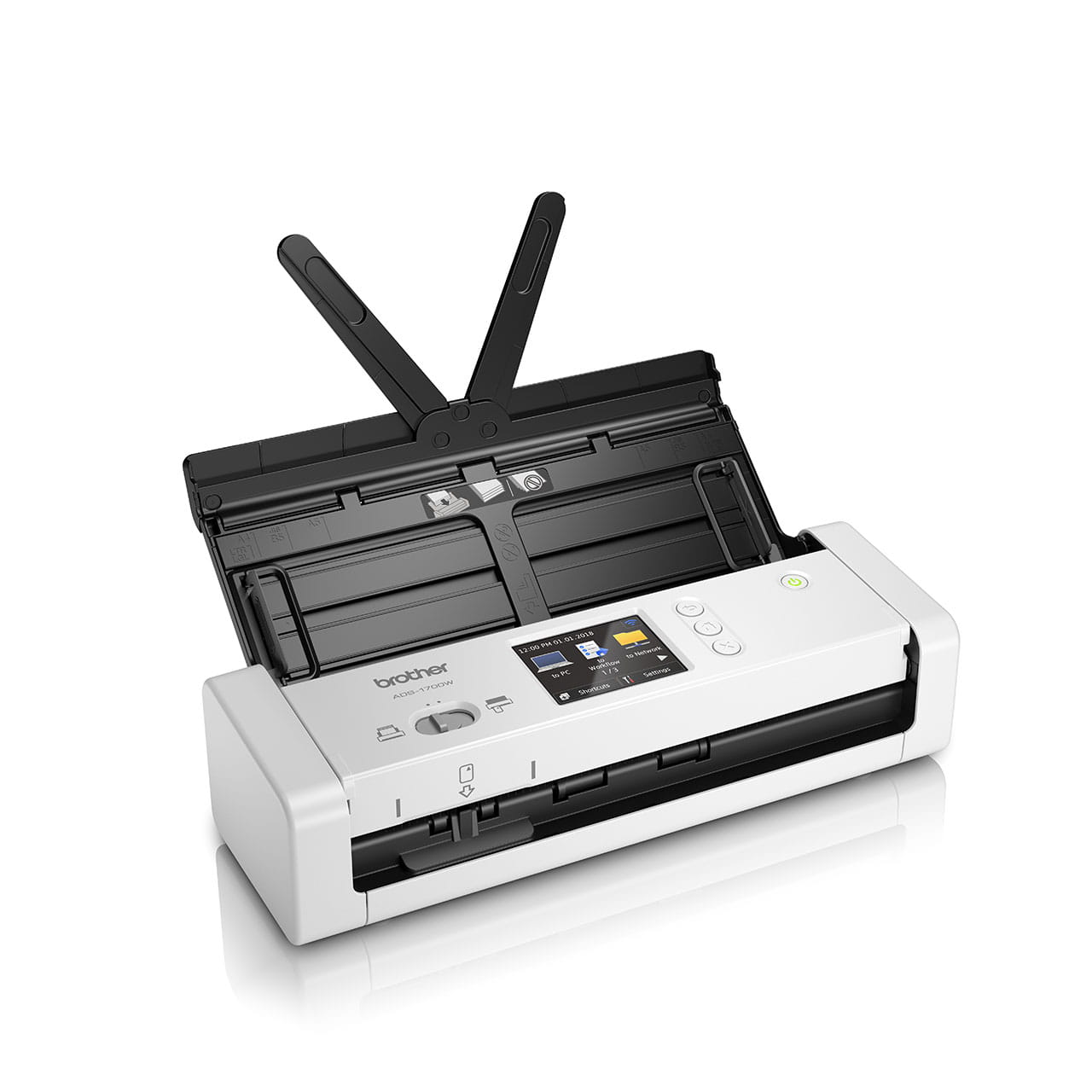

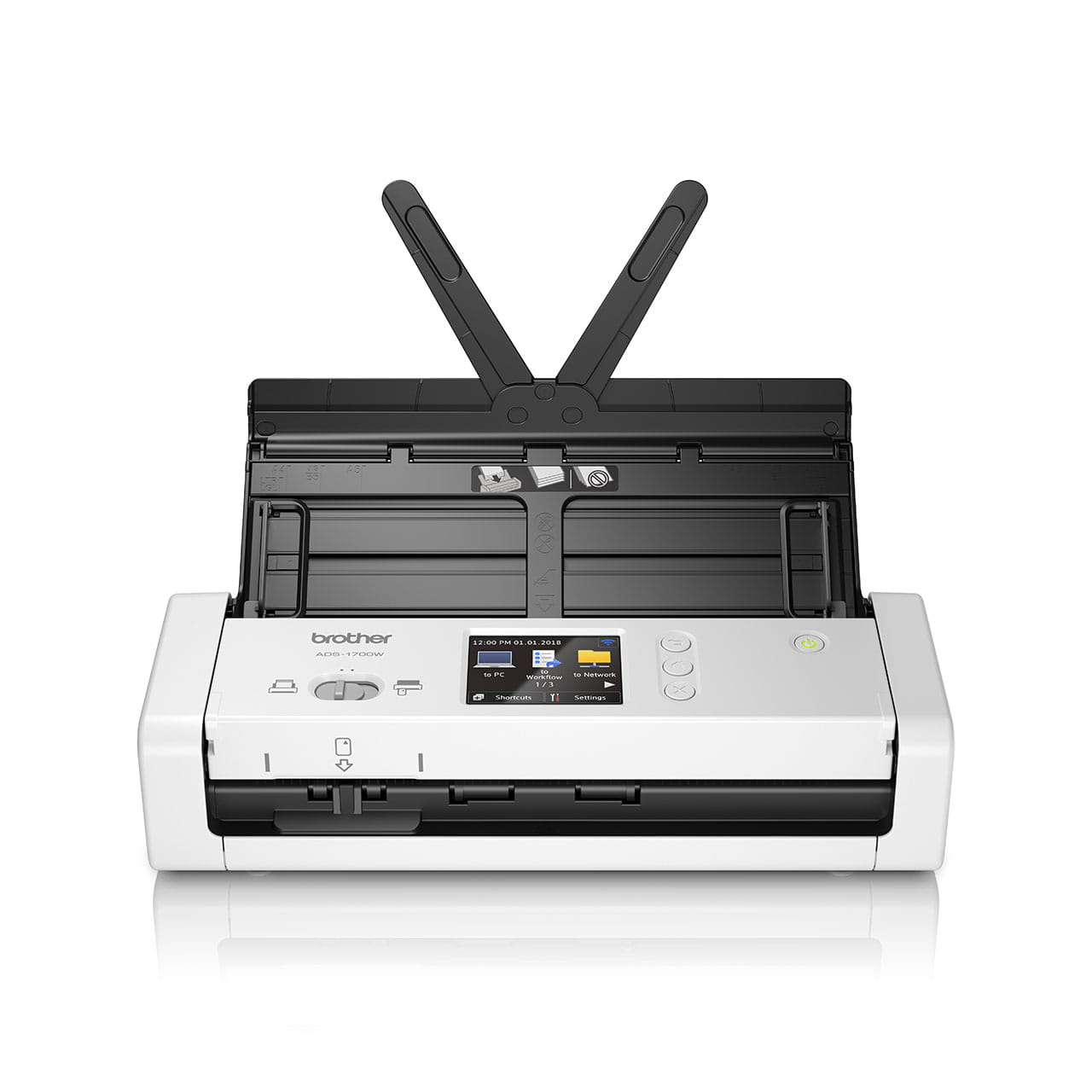

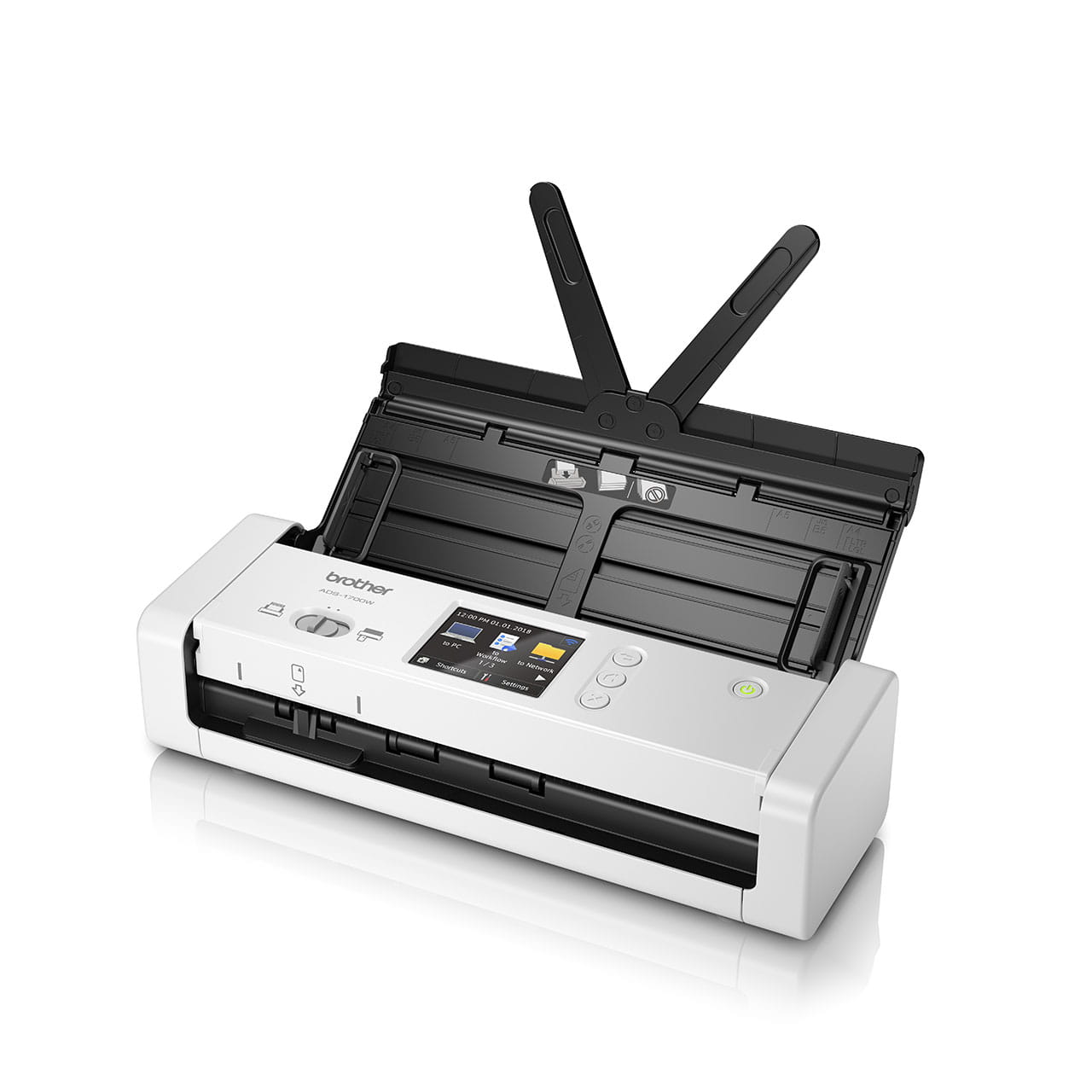

Compact wireless document scanner
- 25ppm/50ipm, 2-sided colour scan speed
- 20 sheets Automatic Document Feeder (ADF)
- Wireless network connectivity
- Dedicated plastic ID card slot
- Zero-touch scanning with auto start scan
- Create up to 20 shortcuts on the easy to use 7.1cm colour touchscreen
Information
Overview
Specifications
Basic Specs
Scanning Speed
25ppm/50ipm, (A4) 2-sided colour scan speed
Document Size - Multiple Sheets - Width
51 mm to 215.9 mm
Document Size - Multiple Sheets - Length
70 mm to 863 mm
Document Size - Single Sheet - Width
51 mm to 215.9 mm
Document Size - Single Sheet - Length
70 mm to 863 mm
Colour / Monochrome
Yes/Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Max.216 mm
Product Dimensions (Width X Depth X Height)
300 mm × 103 mm × 83 mm
Weight
1.4 kg
ADF (Automatic Document Feeder)
Up to 20 sheets
Memory Capacity
SDRAM: 512 MB
Network
Wireless Network Security
WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Setup Support Utility
WPS
Display Type
Touchscreen LCD
7.1cm LCD colour touchscreen
Operation
Power Source
AC: 220 - 240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 9W
Power Consumption - Ready
Approx. 4.5W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.5W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows 7 SP1/8/8.1/10
Server2008 R2 SP1/2012/2012 R2/2016
TWAIN Compliant - Macintosh
MacOS v10.11.6/10.12x/10.13x
WIA Compliant - Windows®
Windows 7 SP1/8/8.1/10
Server2008 R2 SP1/2012/2012 R2/2016
ICA Compliant - Macintosh
MacOS v10.11.6/10.12x/10.13x
