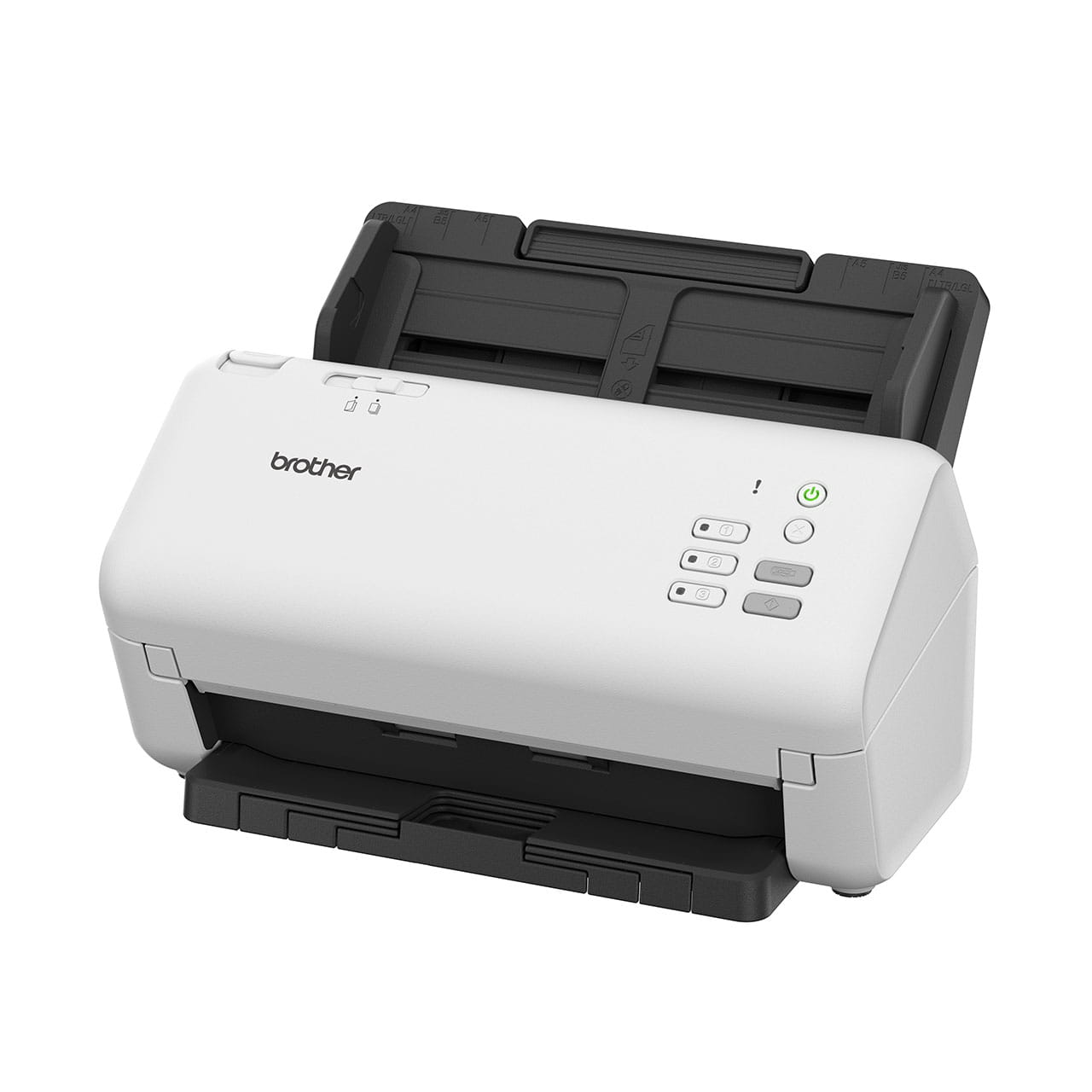

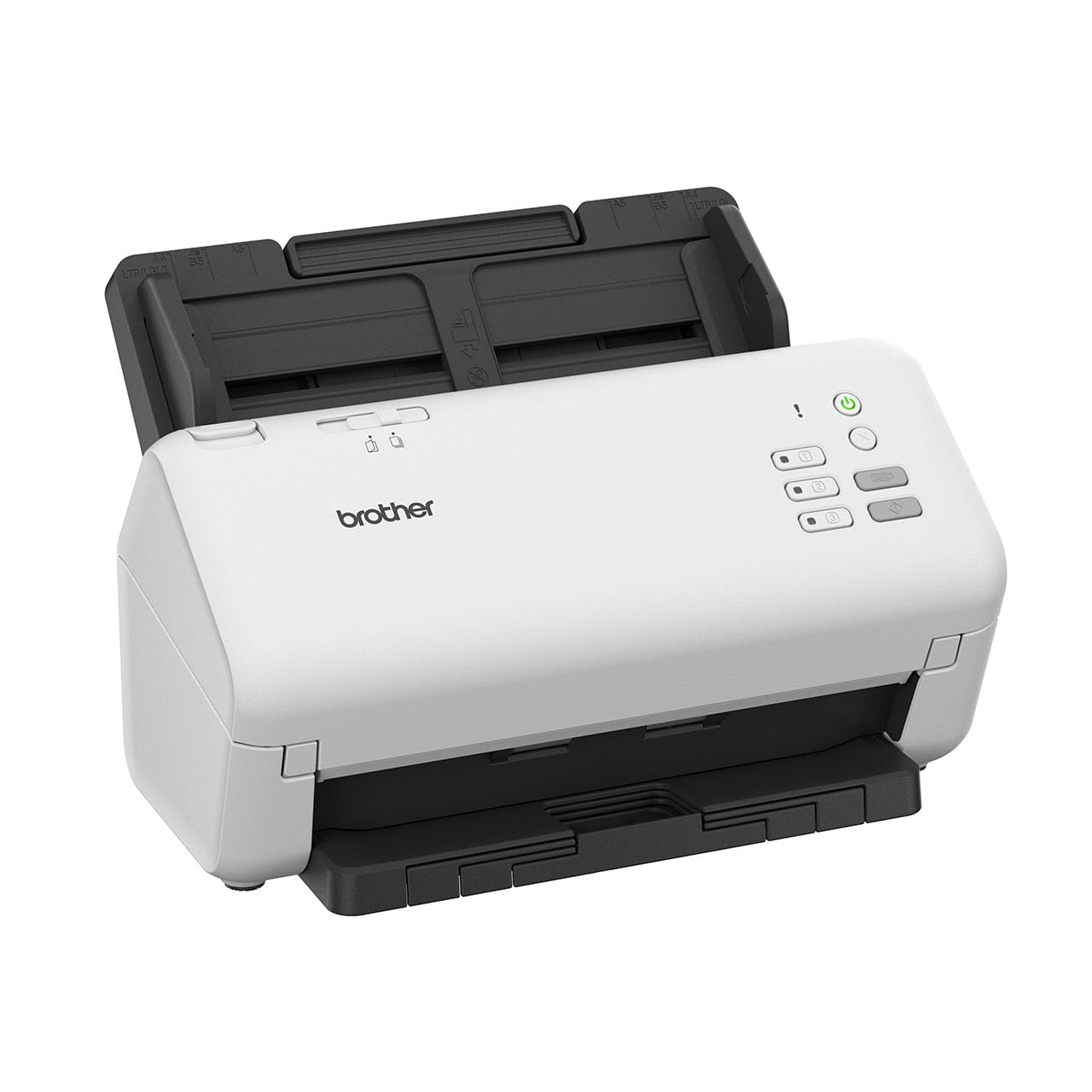

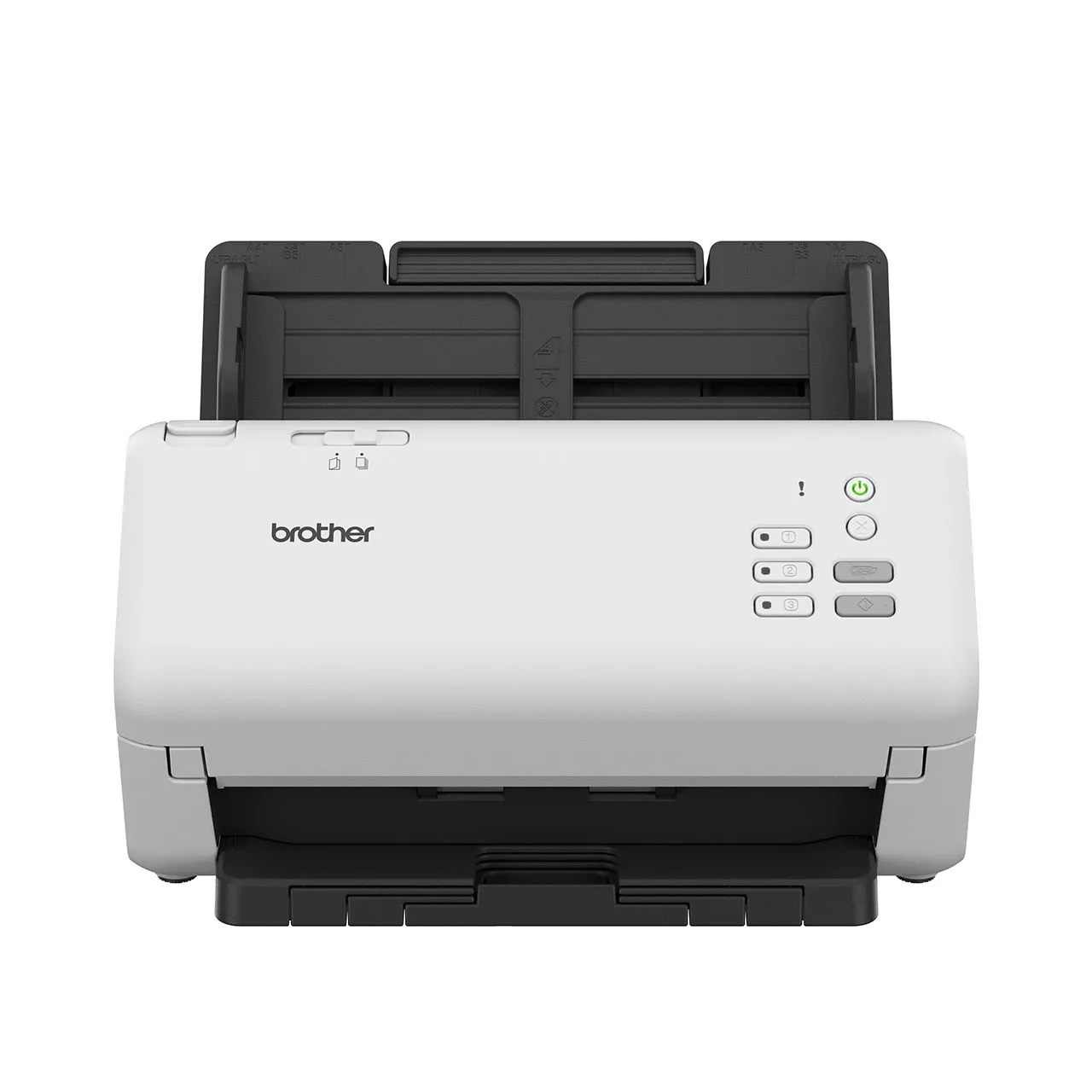

High-speed network desktop scanner
- 2-sided scan up to 80 images per minute
- 80 sheet Automatic Document Feeder (ADF)
- Mobile Connect App
- Driver compatibility with TWAIN (Win, macOS), WIA, ISIS, Linux SAN
- Advanced image processing and batch scan
- Ultrasonic Multifeed Sensor, Separation Switch
Information
Overview
Specifications
Basic Specs
Scanning Speed
40 ppm
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Colour / Monochrome
Yes/Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Product Dimensions (Width X Depth X Height)
299.5 mm × 190.5 mm × 215.9 mm
Weight
2.64 kg
ADF (Automatic Document Feeder)
Up to 80 pages (Paper: 80 g/m²)
Memory Capacity
512 MB
Operation
Power Source
AC: 100-240V, 50/60 Hz
Power Consumption - Scanning
Approx. 24W
Power Consumption - Ready
Approx. 6.8W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
