Electrician and Network
Infrastructure Labelling
Designed to comply with cabling regulations, our Electrician and Network Infrastructure labelling range is built with dedicated function keys that enable quick creation of labels for network and optical fibre cables, patch panels, data centre equipment and many more.
LABELS DESIGNED FOR YOUR INDUSTRY
From 6mm to 36mm, our industry-leading labels are tested to the extreme to meet the demands of your profession.
Choose from:
- TZe tapes with hard-wearing laminated technology
- Strong adhesive tapes with 50% more strength to stay put in the most demanding environments
- High-grade, flexible ID tapes that wrap securely around wires and cables
- Heat shrink tubes for clear cable identification
WHY IDENTIFY YOUR NETWORK INFRASTRUCTURE AND CABLES
WITH BROTHER LABEL PRINTERS
Quick identification
Clearly labelled cables, equipment and patch panels ensure that these items can be identified quickly.
Be compliant
Comply with ANSI/TIA-606C or other standards that specify durable, long-life identification labels must be used.
Speedy maintenance
Maintenance and testing made faster thanks to clearly labelled cables and equipment.
Aids troubleshooting
Easily find faulty equipment and cables to ensure immediate repair and minimum downtime.
EXTRA STRONG ADHESIVE TAPES FOR USE ON ROUGH AND SMOOTH SURFACES
Independent laboratory tests showed that Brother’s strong adhesive (TZe-S series) tapes adhered on average three times better to rough surfaces than standard Brother TZe tapes. Ideal for electricians and network infrastructure installers who need long-lasting labels.
Use the extra strong adhesive tape on smooth or rough surfaces such as:

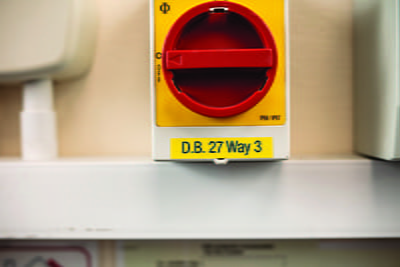

Distribution boards

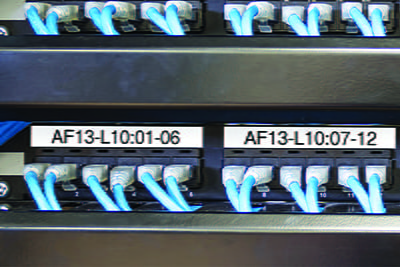

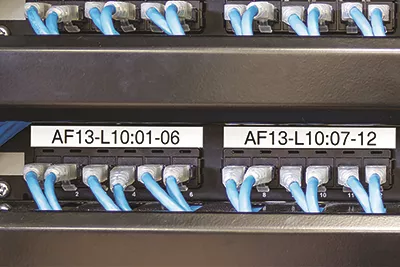

Network cabinets and patch panels
Sockets and switch boxes
Coated metal cabinets and panels
TAPES FOR CABLE MARKING
Brother recognizes the importance of correct and reliable cable and wire identification.
That is why we have developed four different types of tapes for cable marking:

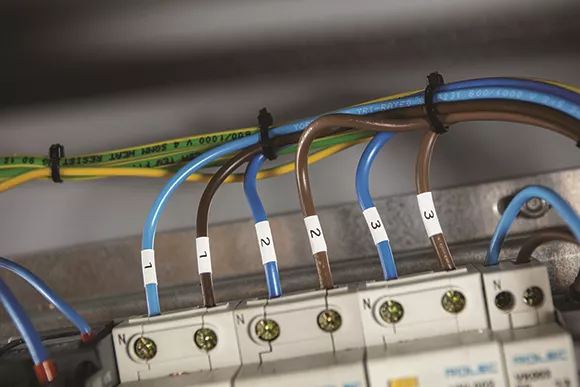

Flexible ID Tape (TZe-FX series)
Developed for electricians, network infrastructure, panel builders and other industries that require a reliable identification solution, this tape can be used to mark cylindrical shaped items where other tapes may peel over time.
- For wrapping around cables with a diameter of 3mm or more.
- Use as a flag label around cables with a diameter of 3mm or more.
Self-Laminating Tape (TZe-SL series)
The protective overlaminate being applied to the whole label at the time of printing can wrap around CAT5E and even the thicker CAT6A network cables providing extra protection for the text on the label.
- Use 24mm label width for cables with a diameter of 3mm to 6.6mm.
- Use 36mm label width for cables with a diameter of 3mm to 10.4mm.
Die-cut Flag Tape (FLe series)
Suitable for cables with small diameter and ideal for fibre optic cable identification in the network industry. The label is pre-cut and once printed, once printed the long "tail" can be placed around the cable and the label simply folded over the tail to lock the label into position.
- For cables with a diameter of 2.0 to 8.0mm.

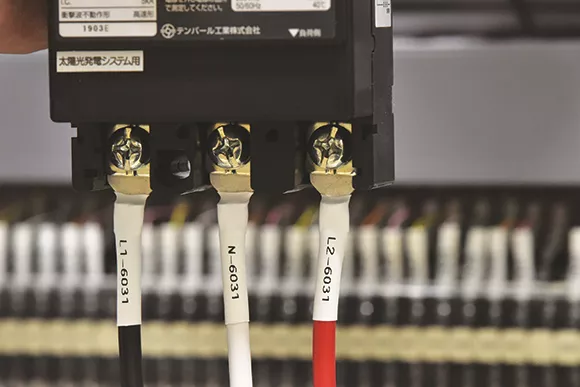

Heat Shrink Tube (HSe series)
This non-adhesive marker is made of a special material that is stored in the tape cassette as a flat tube. Once printed, the tube is opened up and passed over a cable or terminating connector. After heating, the tube will shrink to about half its original width, taking the shape of the cable or connector.
- For identification of cables and terminating connectors.

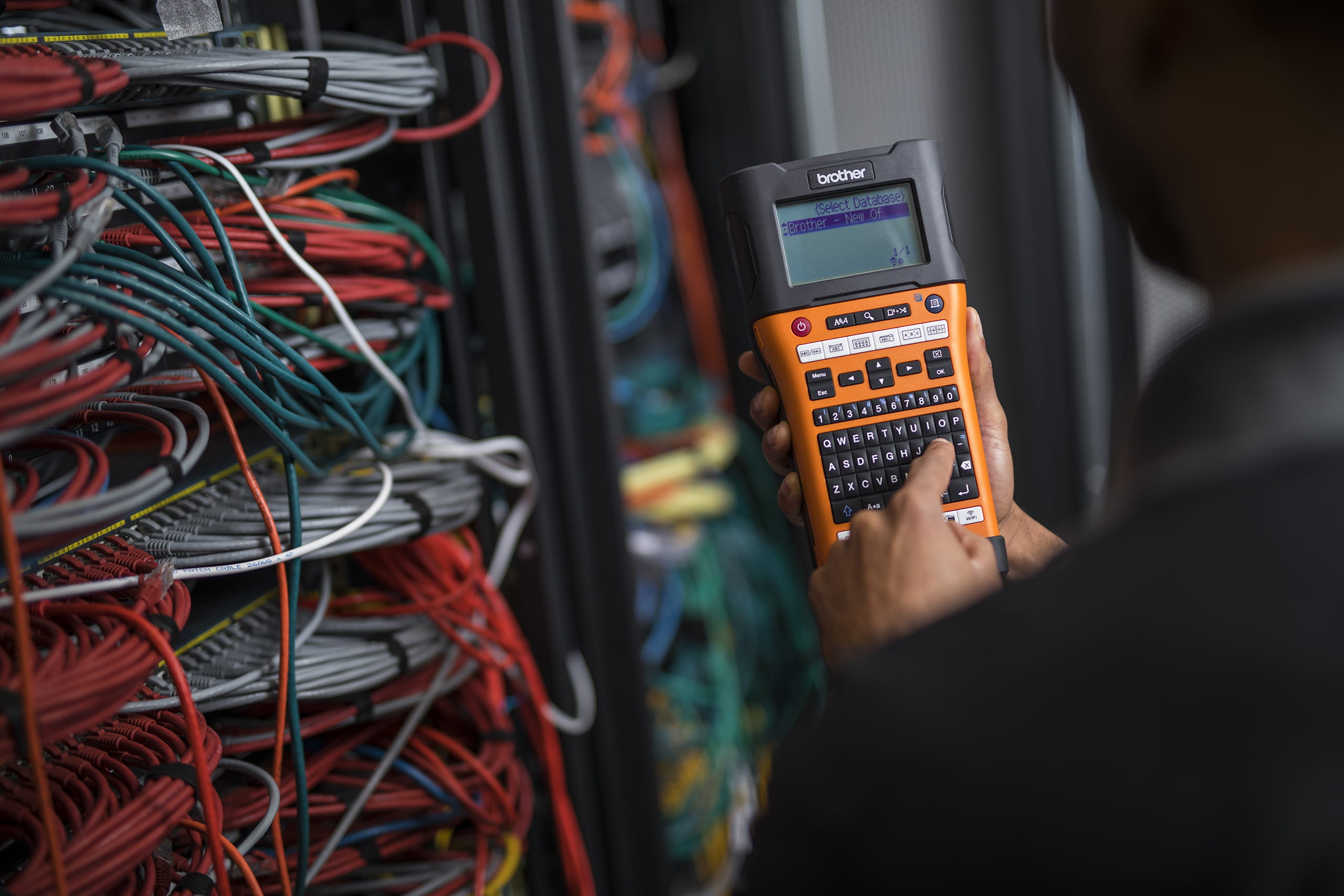

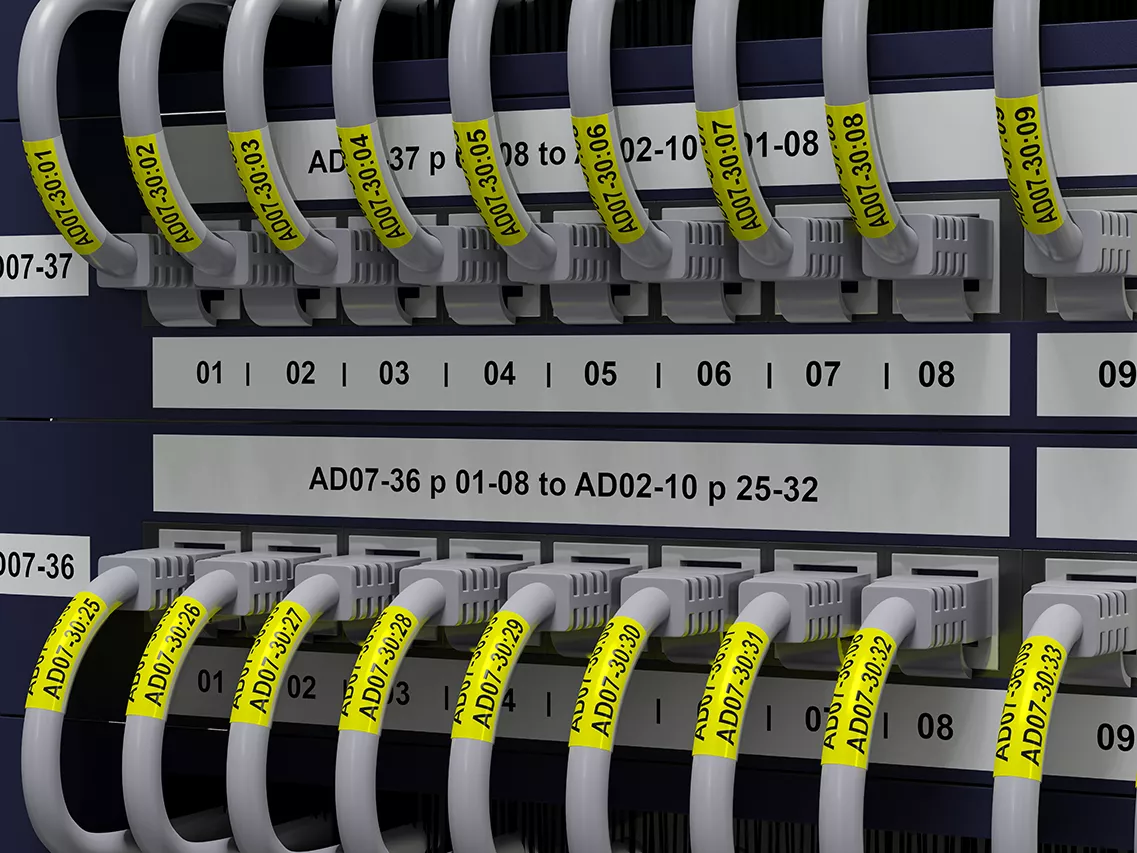

Network infrastructure identification at your fingertips
View the Brother Pro Tape range

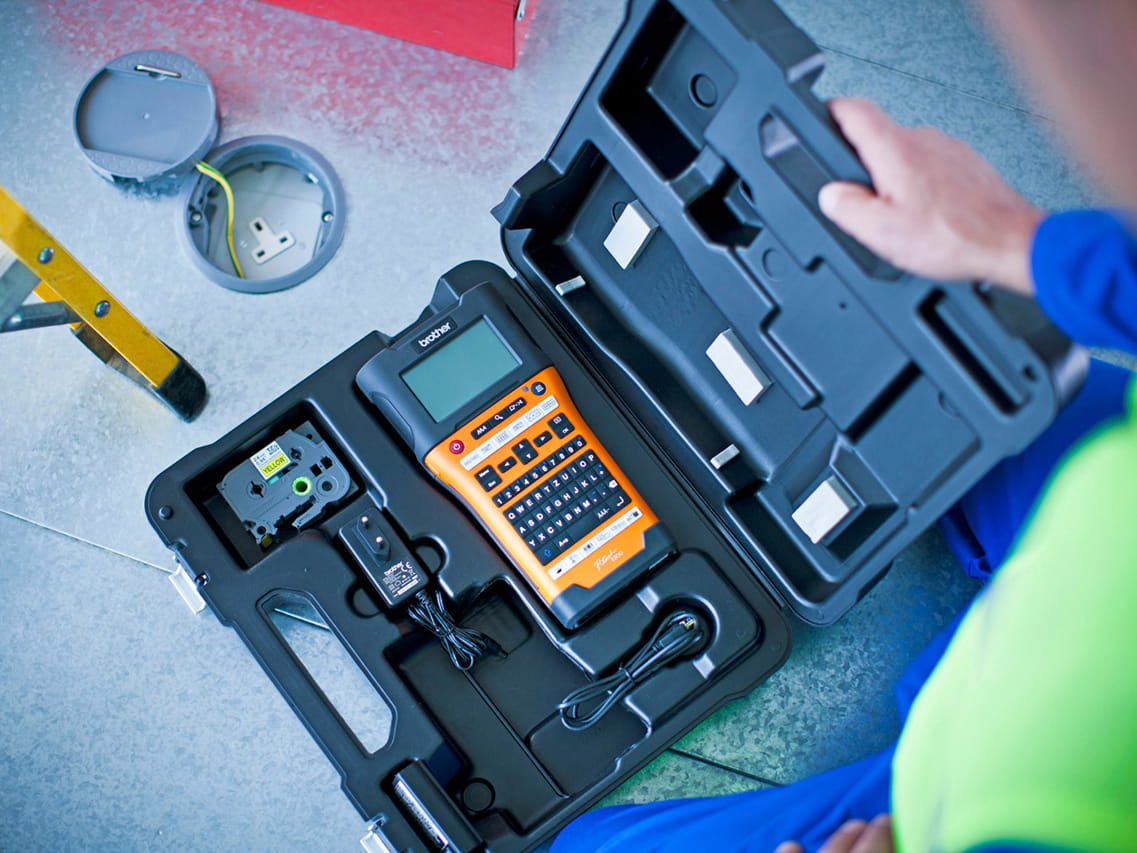

Label printers to suit your work environment
With our comprehensive selection of robust label printers, you can enjoy clarity of information across a broad range of applications.
